Two Kits — One System

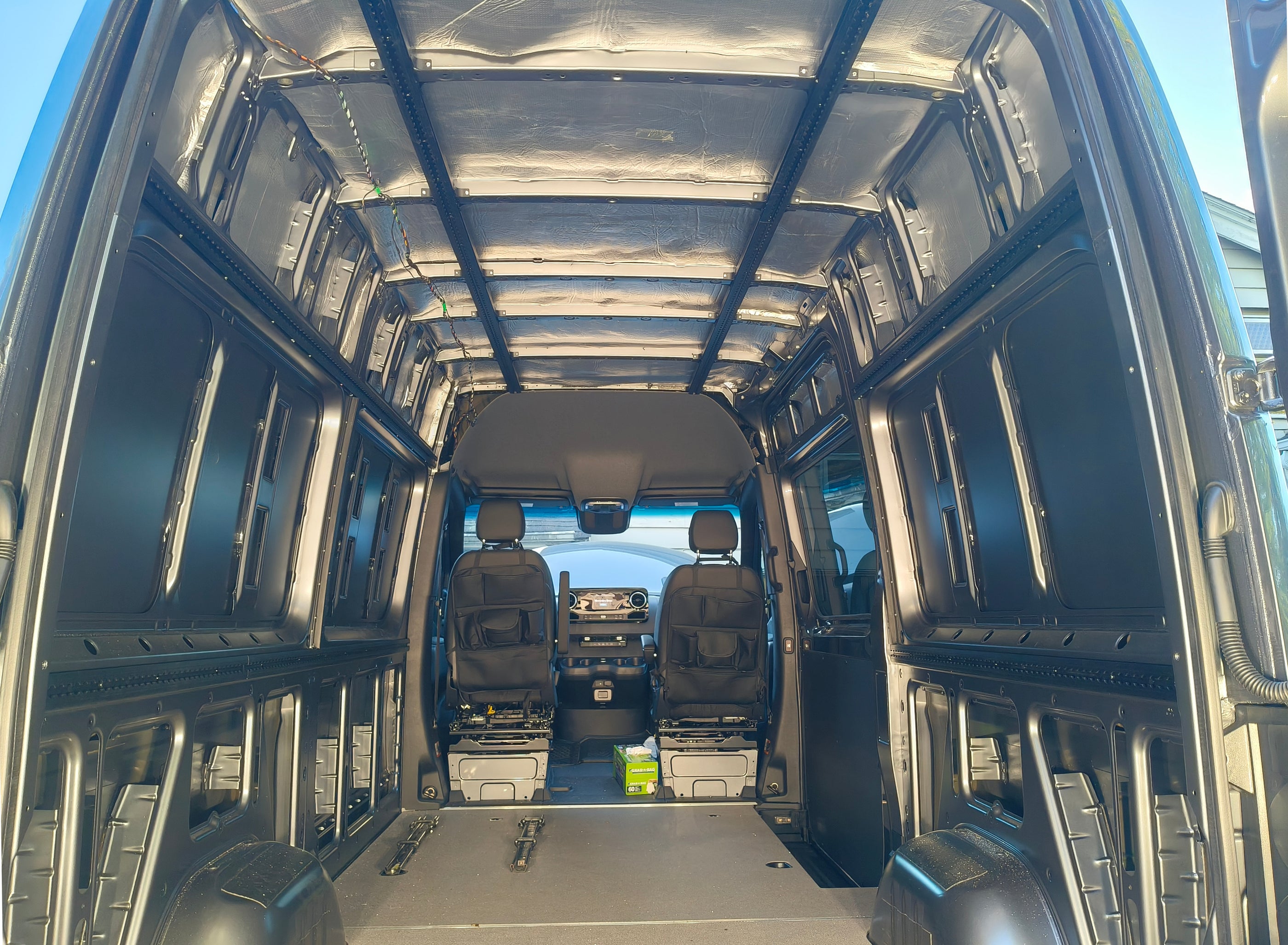

Each kit installs independently and is designed to work together. The Wall Kit covers both side walls while the Ceiling Kit spans the full overhead length. Together they create an unbroken L-Track grid across every buildable surface.

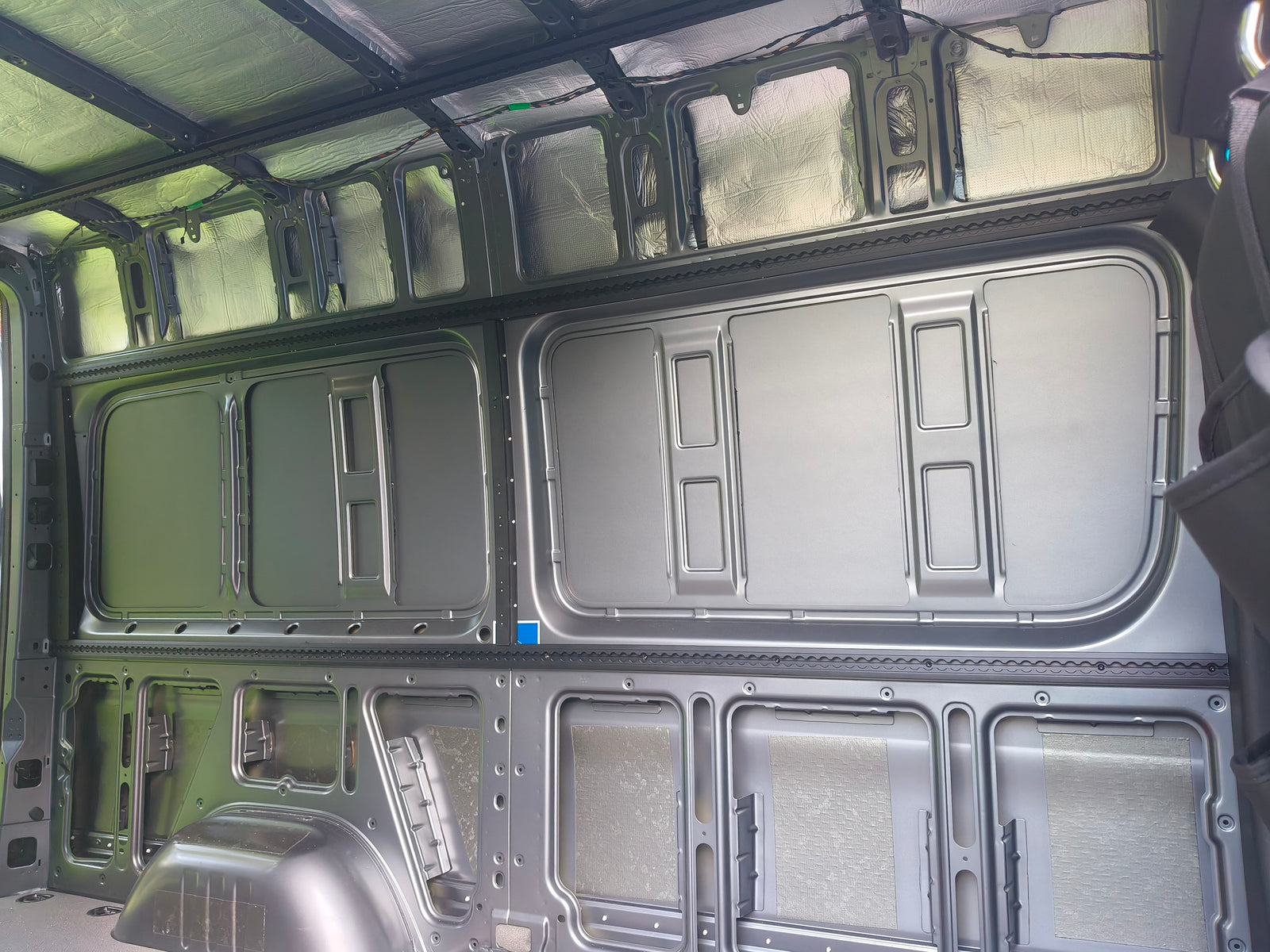

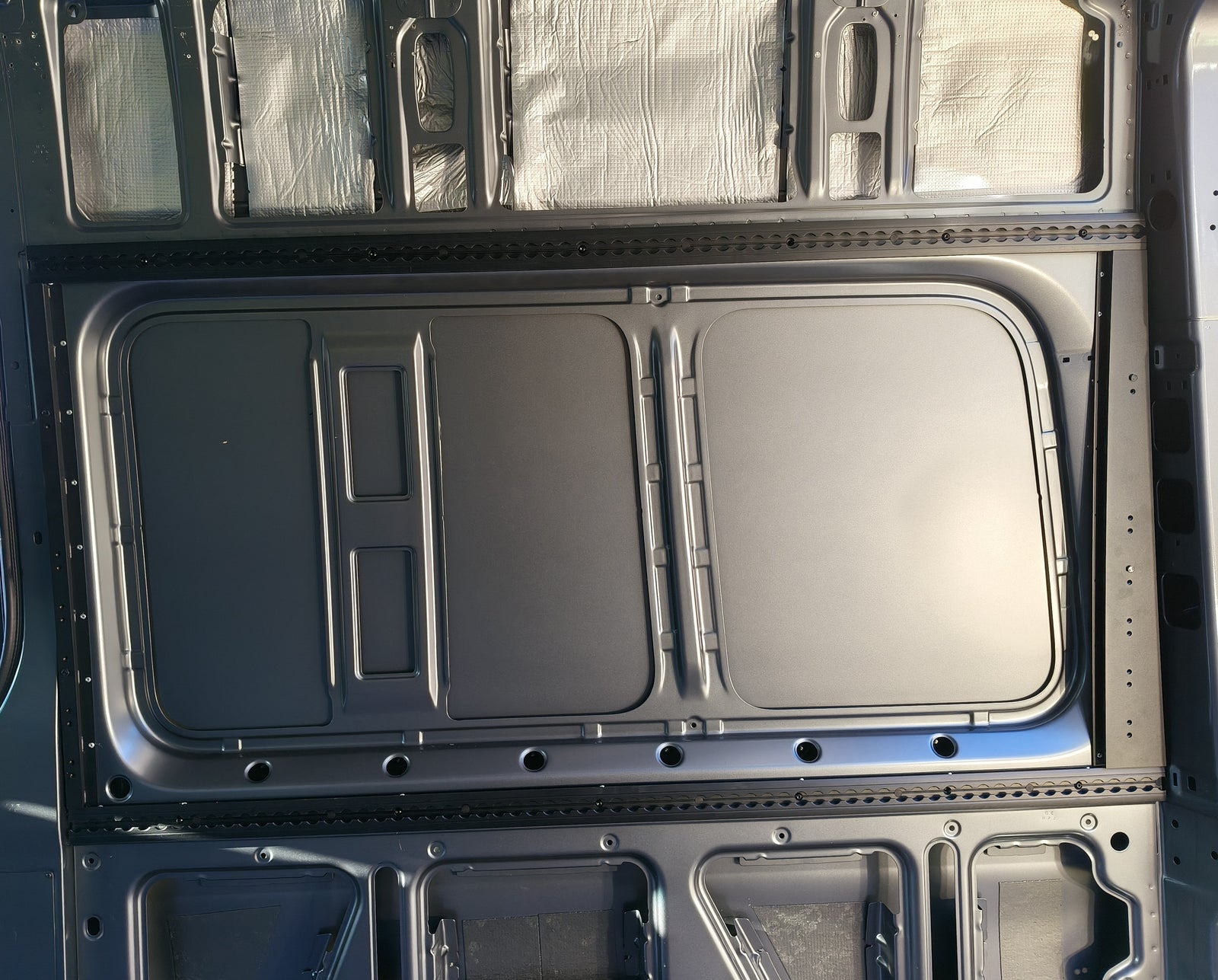

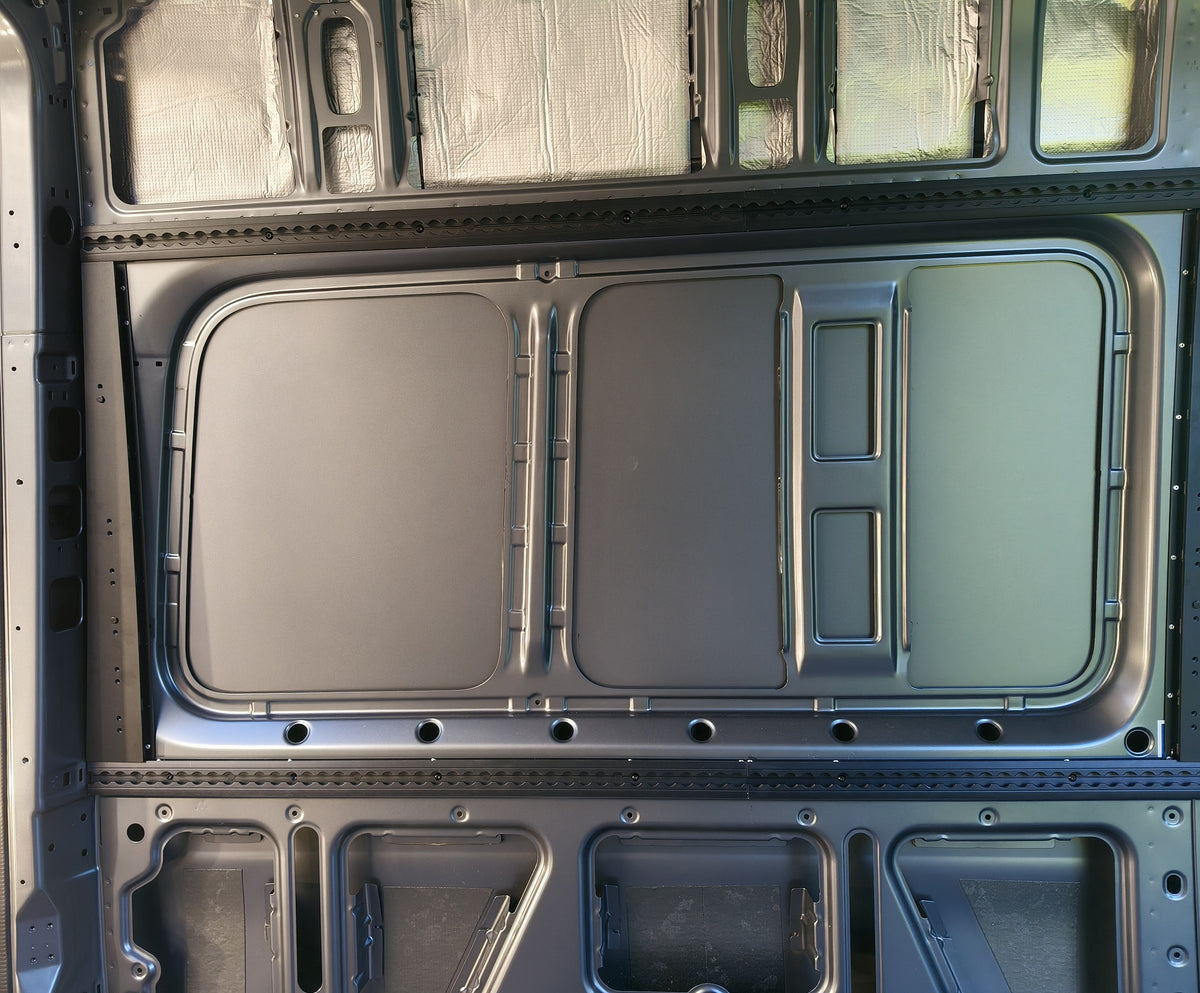

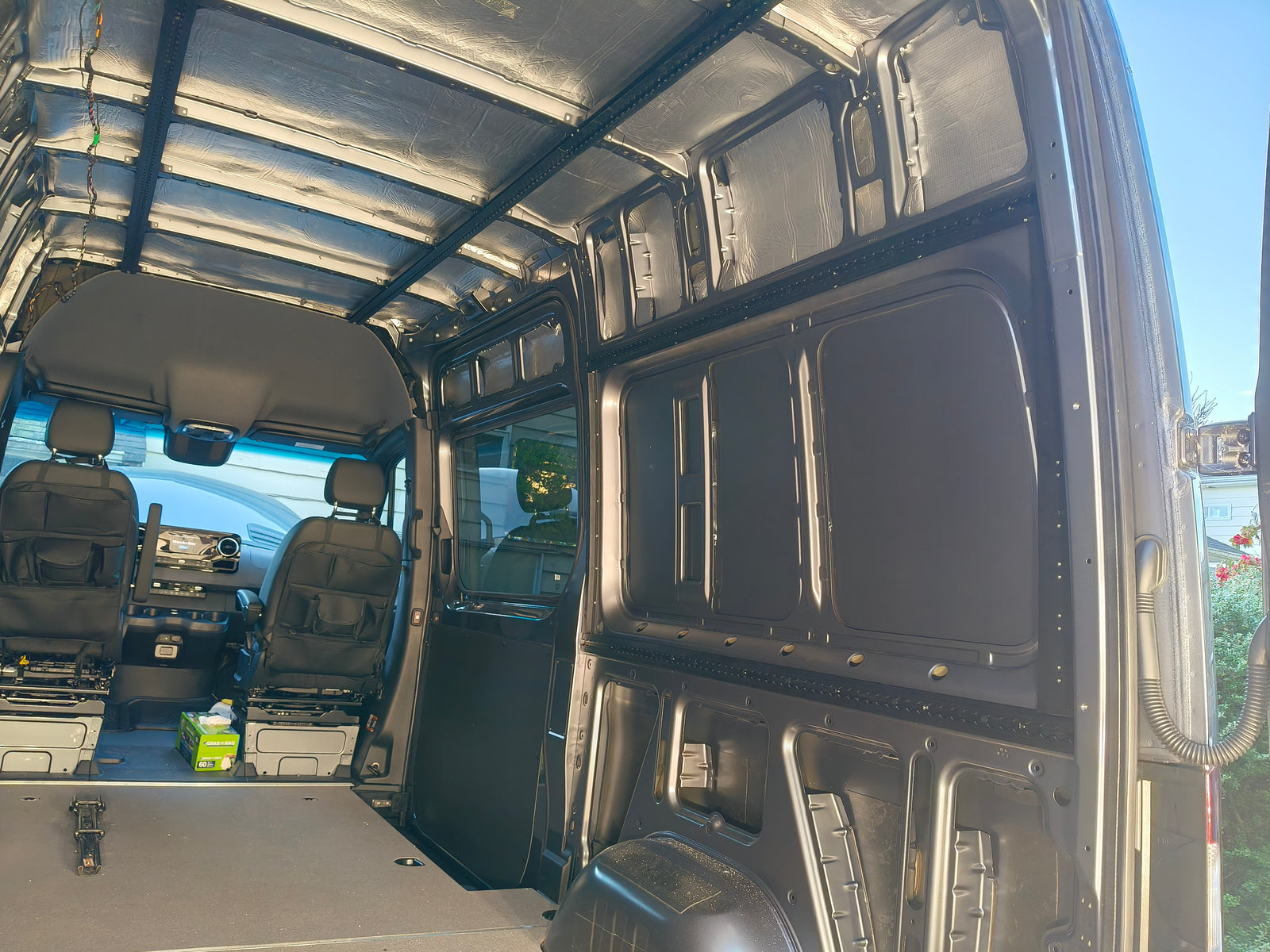

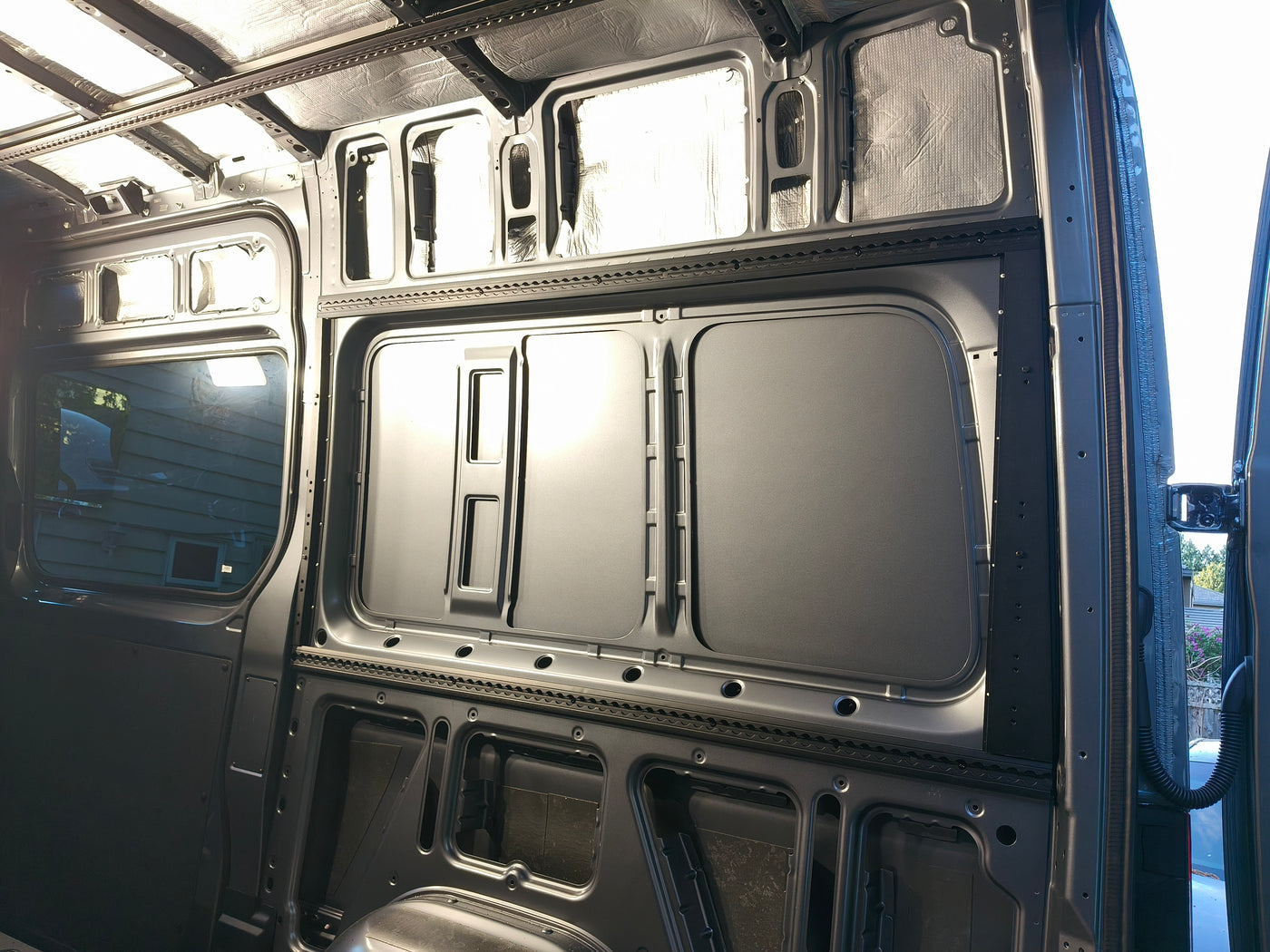

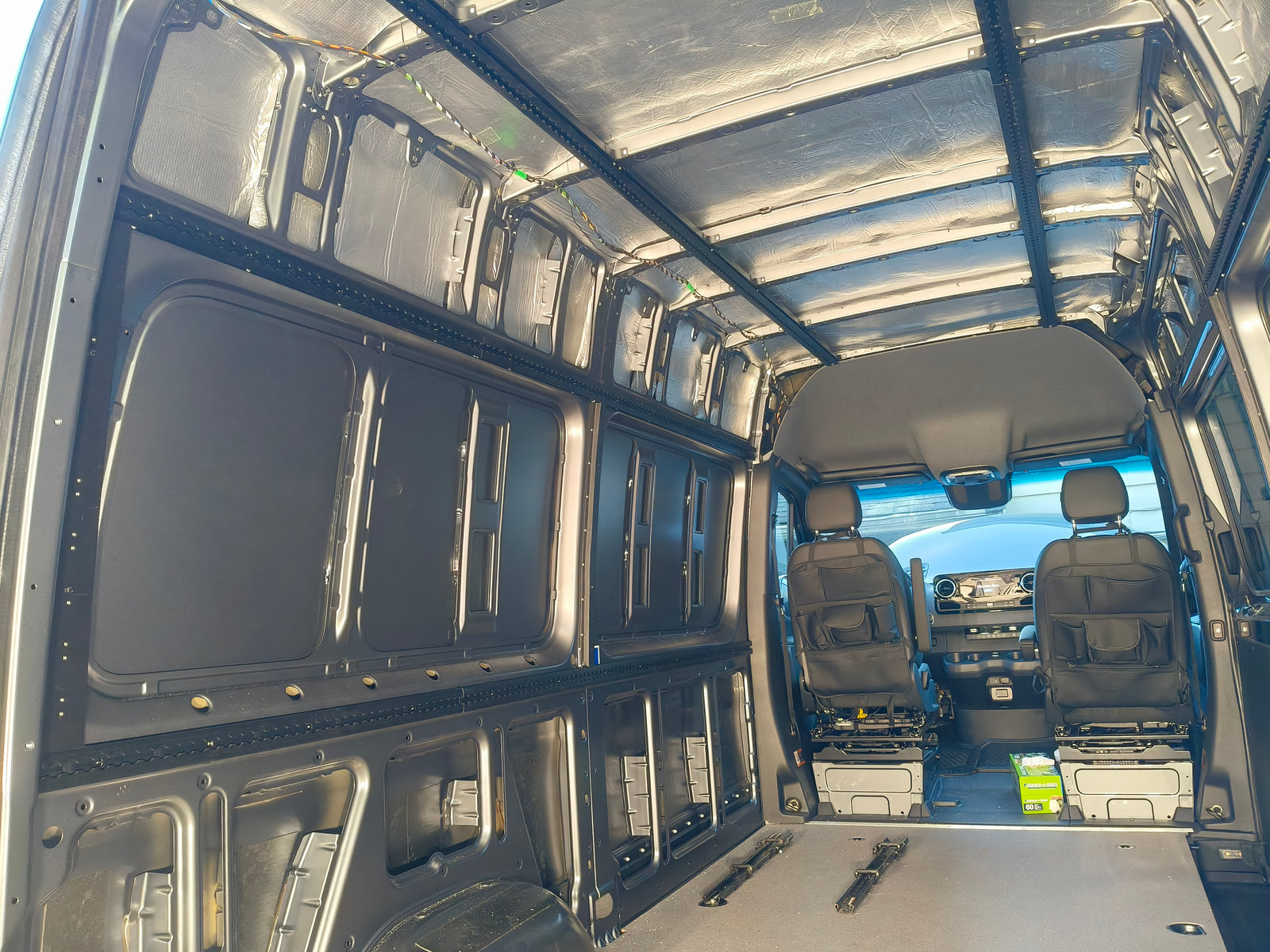

Horizontal plates stack sequentially on both the driver and passenger side. Kit includes integrated rivnuts and sequential labels.
↓

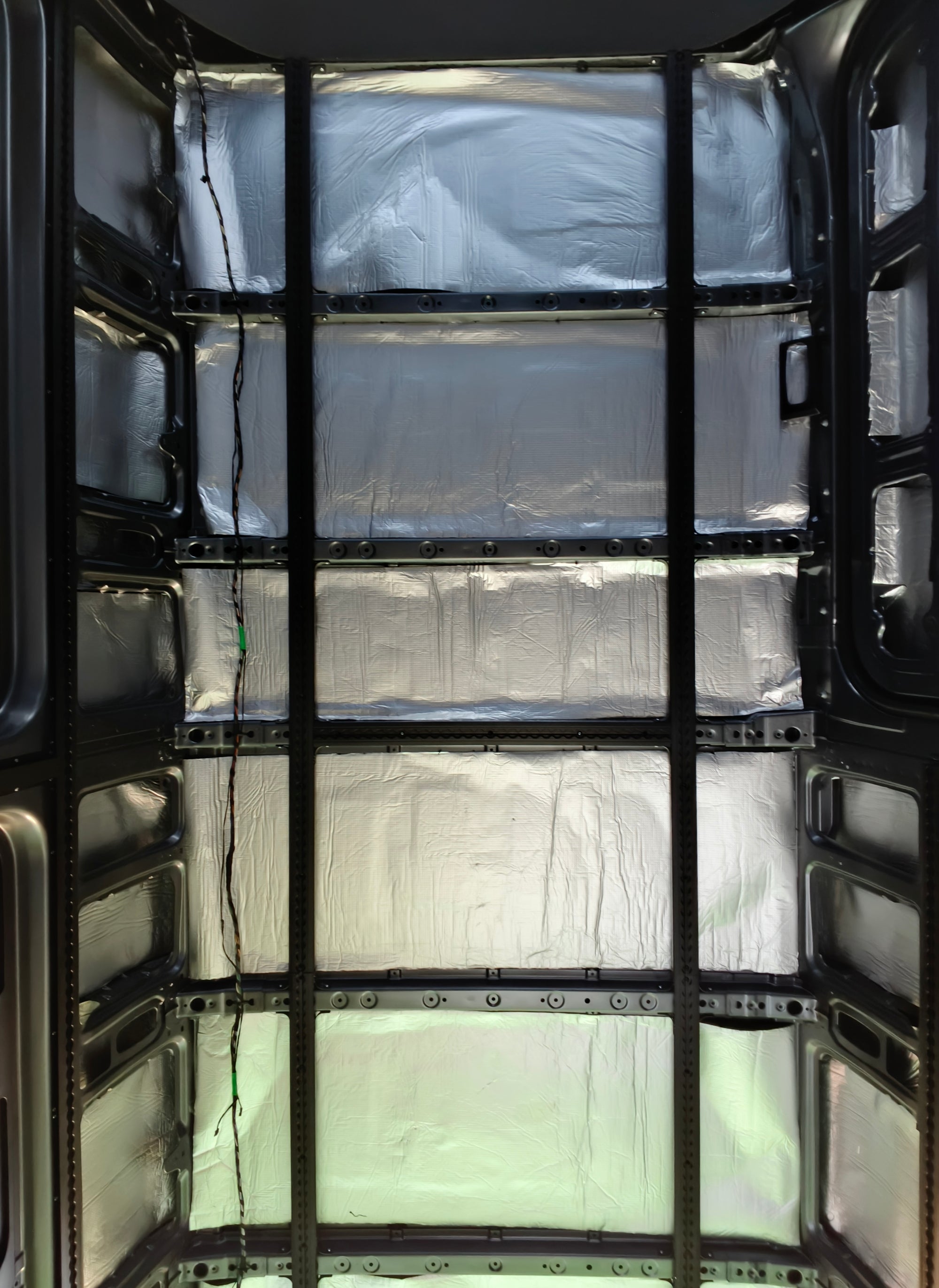

Mounts to factory roof crossbeams. 6061-T6 aluminum L-Track runs across the full ceiling length.

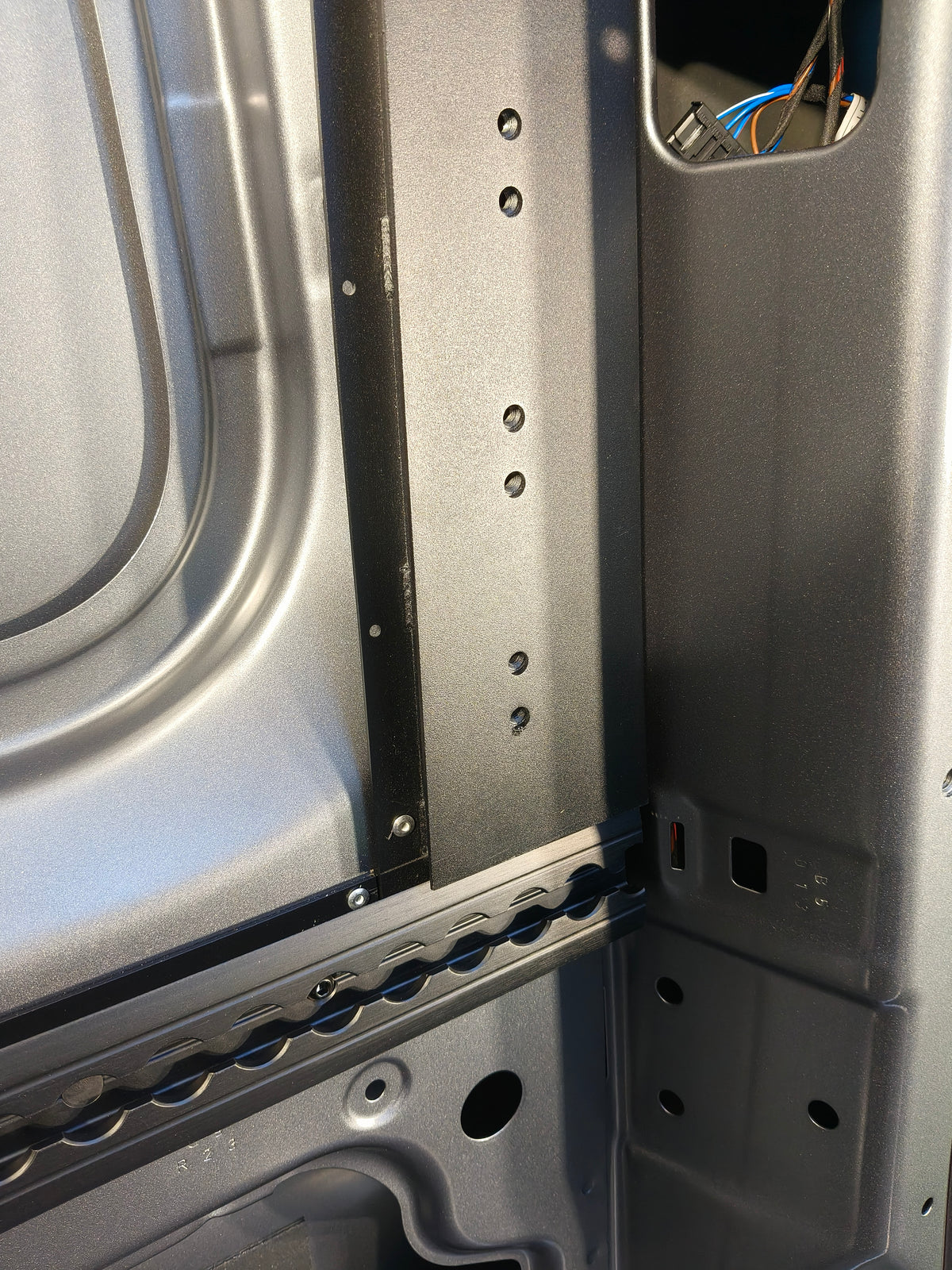

↓Wall plate — full system
System Features
Predrilled & Labeled
Every plate arrives drilled and numbered in installation sequence — no measuring, no guesswork.
Integrated Rivnuts
Rivnuts come preinstalled in every plate with fixed thread alignment — no spin jam when you run the fastener.
6061-T6 Aluminum
Aerospace alloy plates distribute load across the factory panel surface and reduce flex and pull-through under heavy mounts.
Universal L-Track
Standard aviation-spec profile. Compatible with any single or double stud fitting from any manufacturer.
Anodized Finish
Premium anodized surface resists corrosion from road salt, condensation, and long-term cargo exposure inside the van.

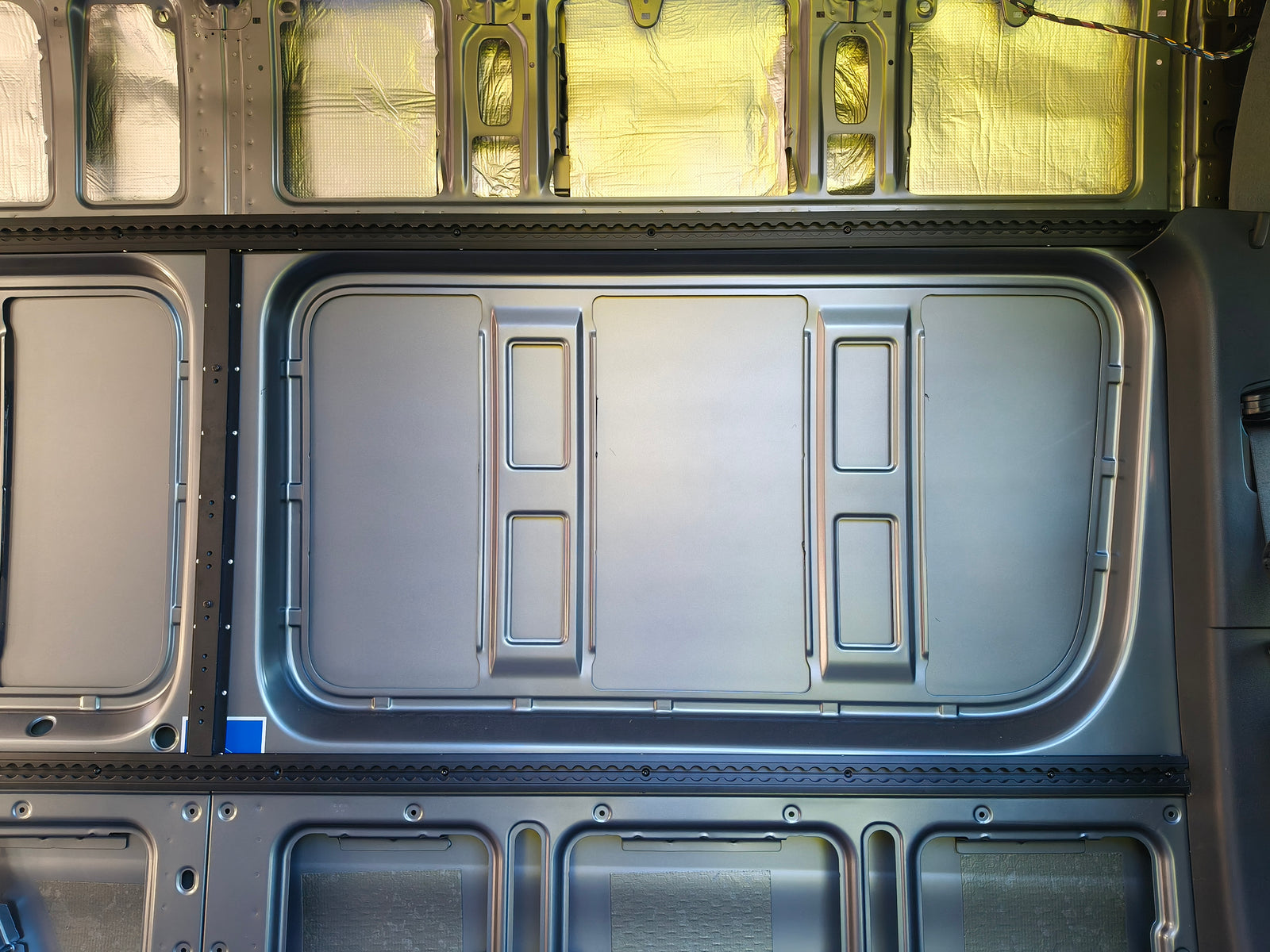

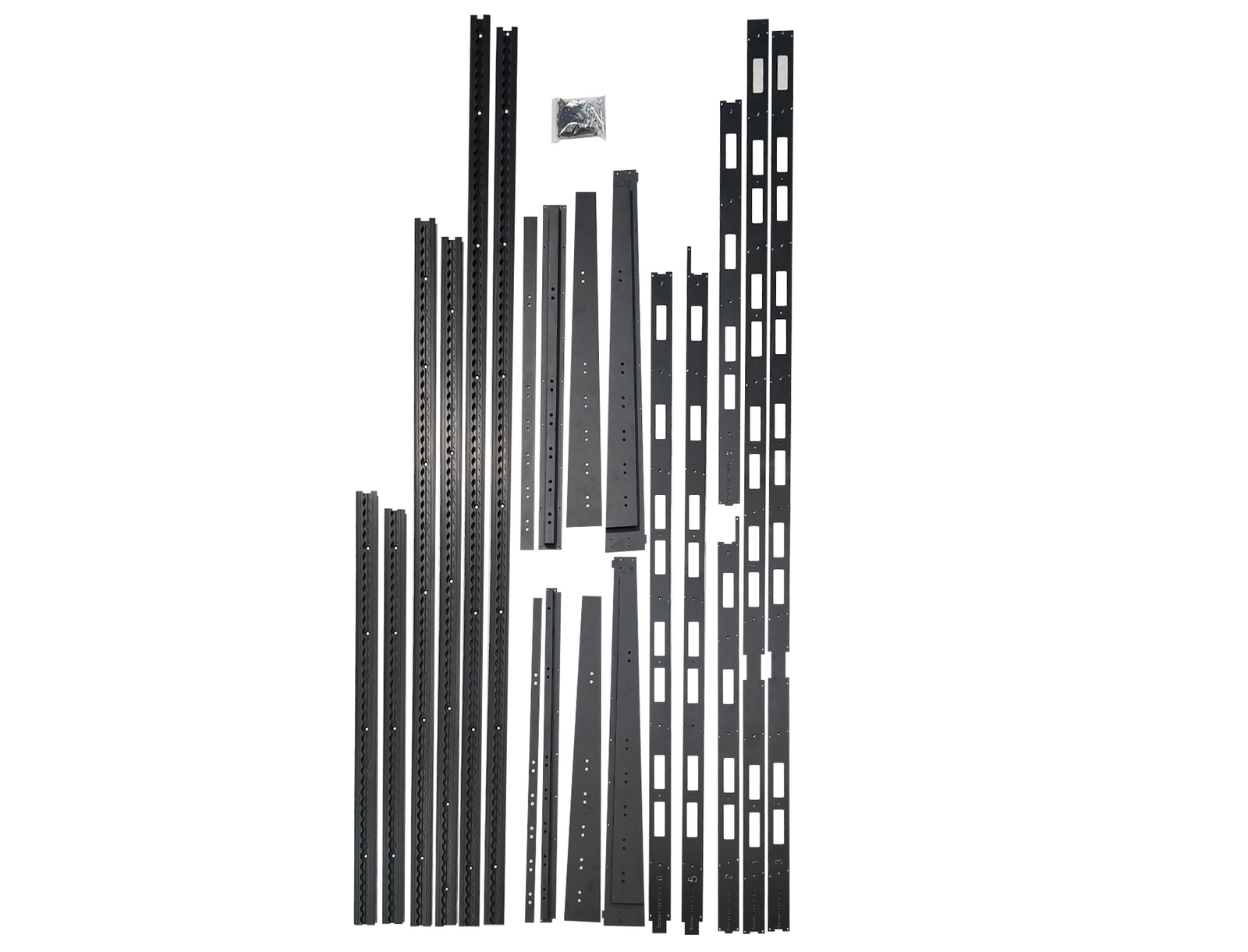

01 — Side Wall Kit
144″ / 170″ Wheelbase Kits

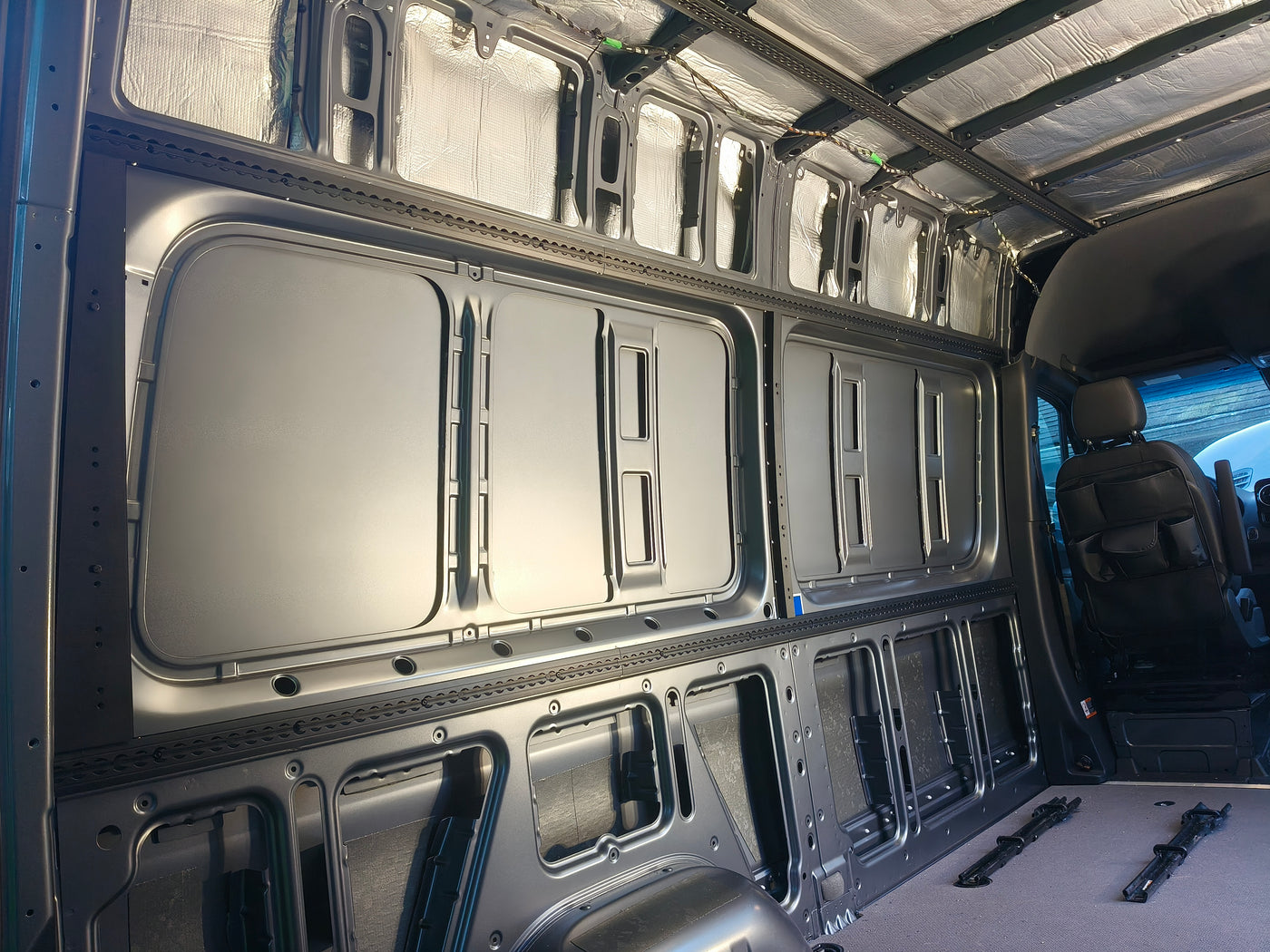

Converts factory Sprinter side wall sheet metal into reinforced, load-bearing anchor points. Predrilled and labeled plates create standardized mounting zones for beds, overhead cabinets, and wall components.
Full Specifications
| SKU | I-FX-Z-MLK-W-144 / -170 |
| Material | 6061-T6 aluminum, anodized |

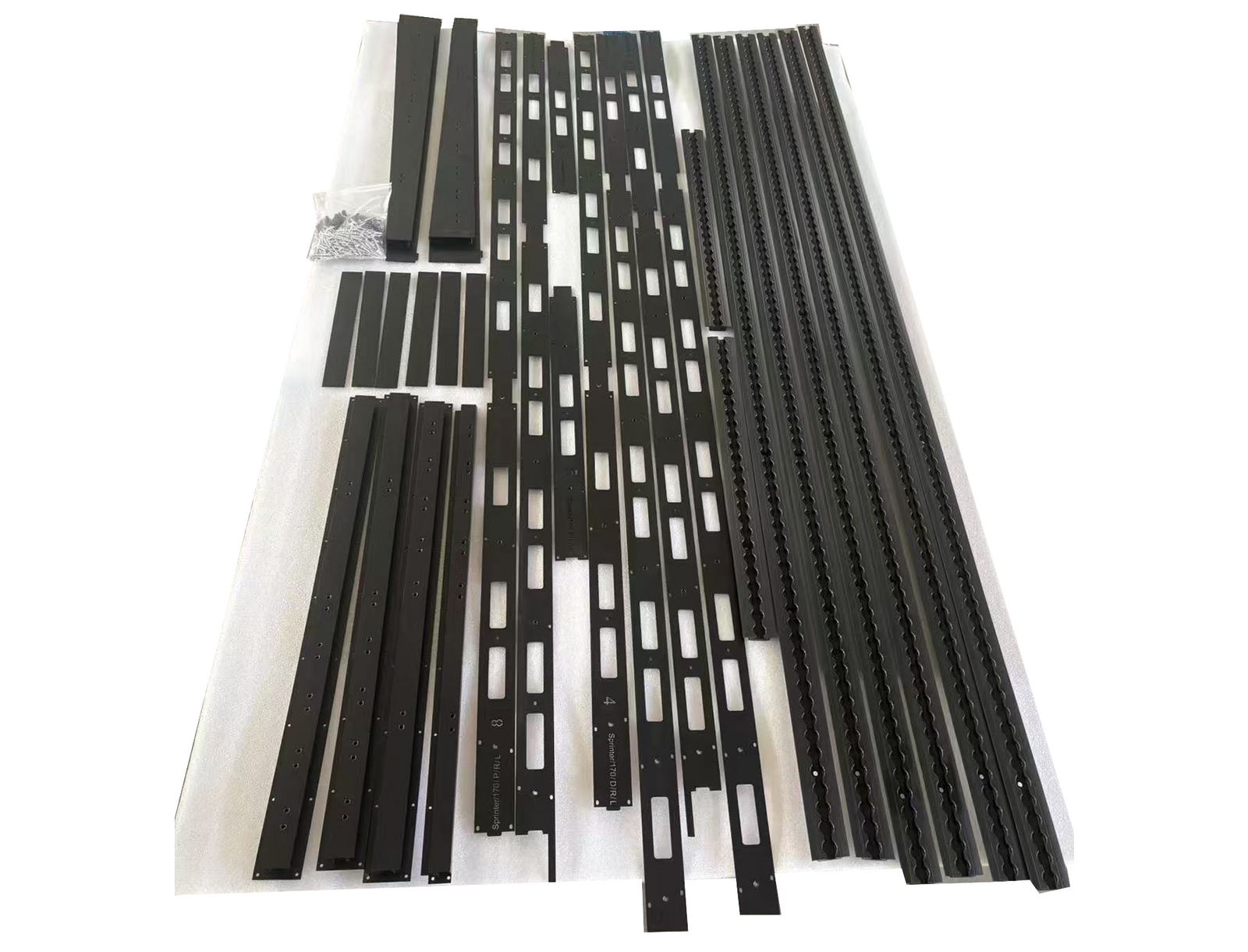

| Wall Plates | 8 total (4 driver / 4 passenger, labeled) |
| Fastener System | Preinstalled rivnuts |
| Single Point Load Limit | 77 lb (35 kg) |
| Full Backplate Load Limit | 441 lb (200 kg) |
| Wheelbase | 144″ and 170″ |
| Compatibility | 2019+ Mercedes-Benz Sprinter |
| Hardware | Complete fastener kit included |

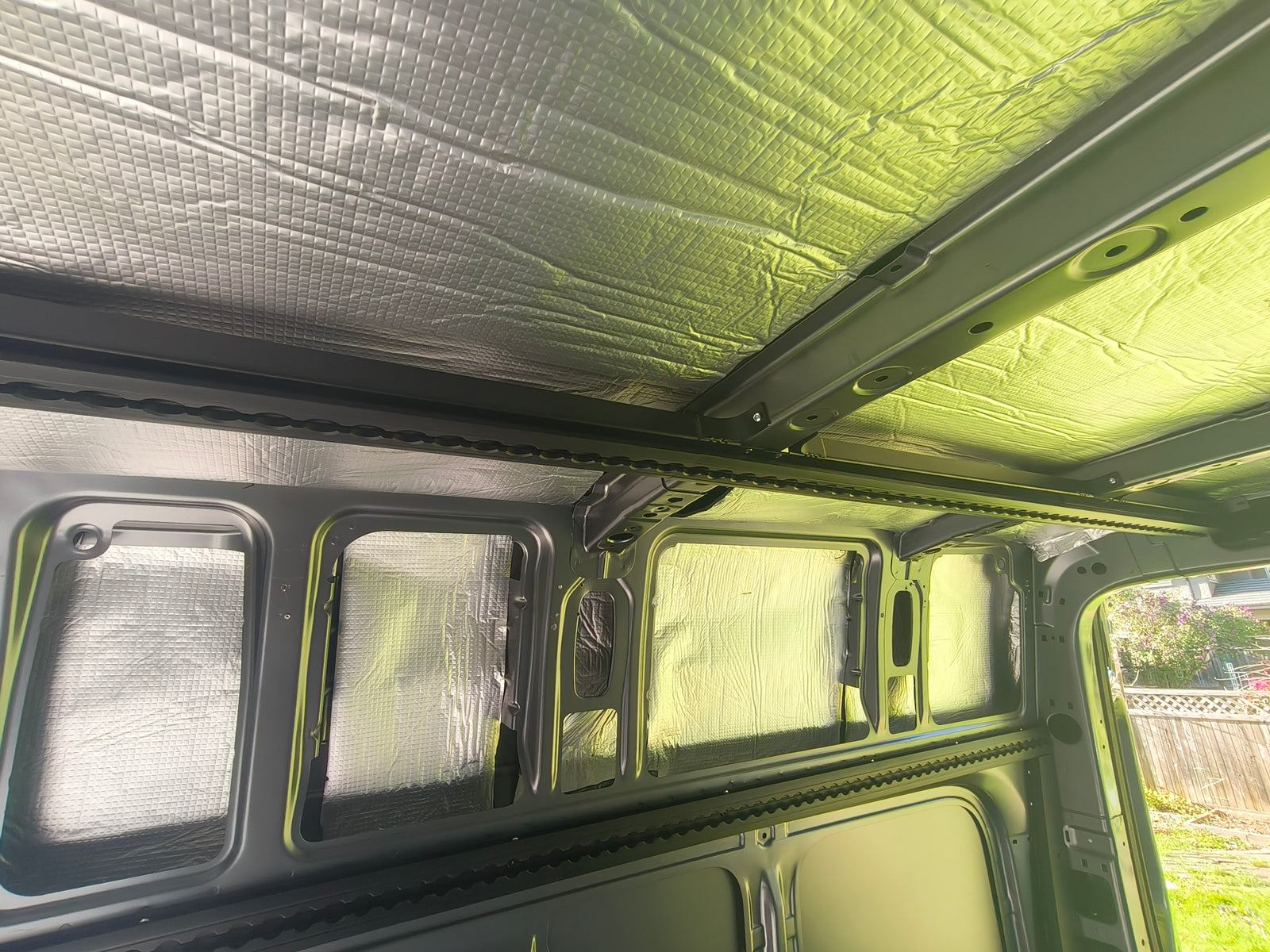

02 — Ceiling Kit
Full-length coverage
across the ceiling.

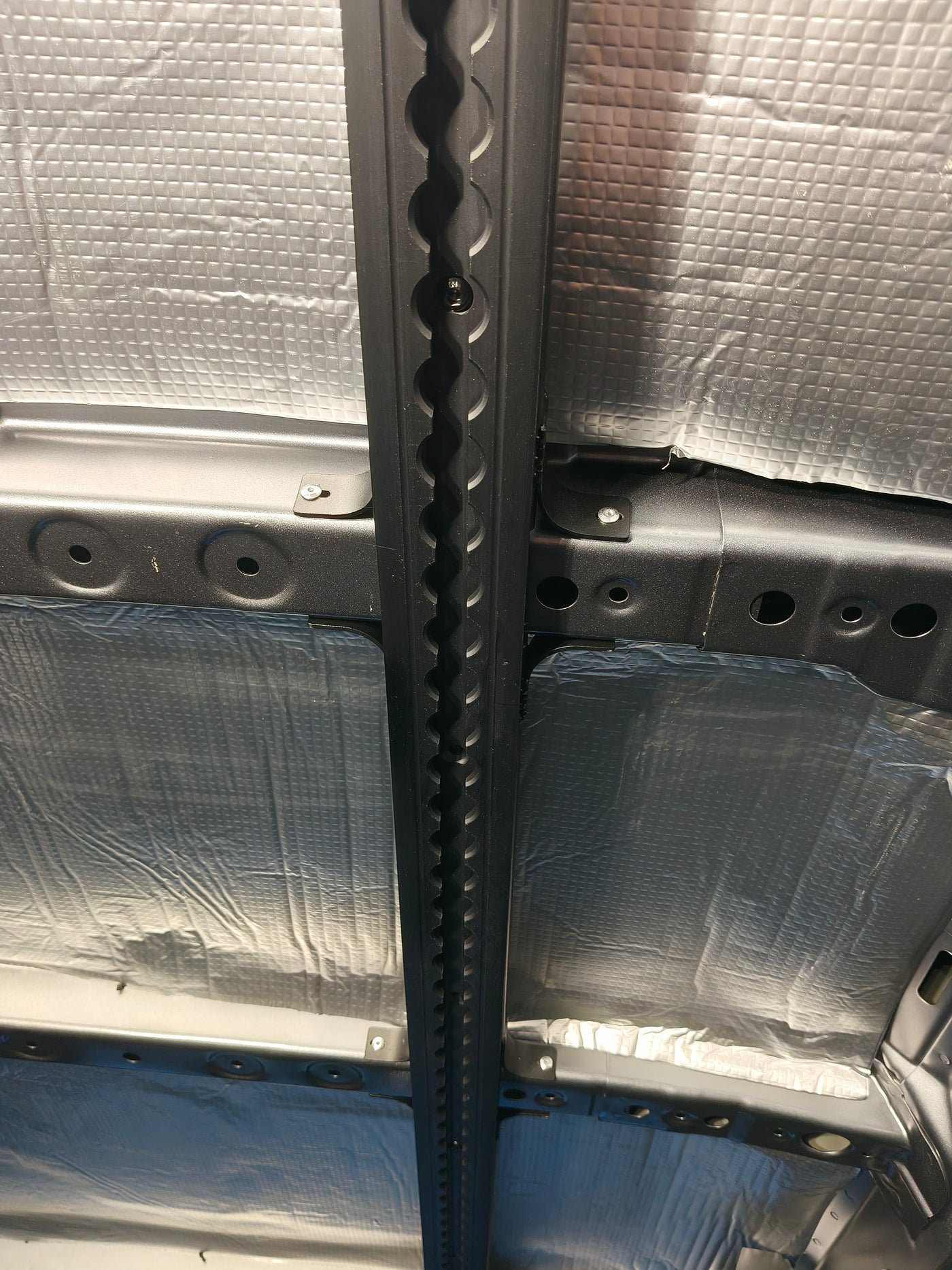

6061-T6 aluminum L-Track mounts to factory roof crossbeams. Built to support beds, overhead cabinets, and ceiling-mounted components.
System Features

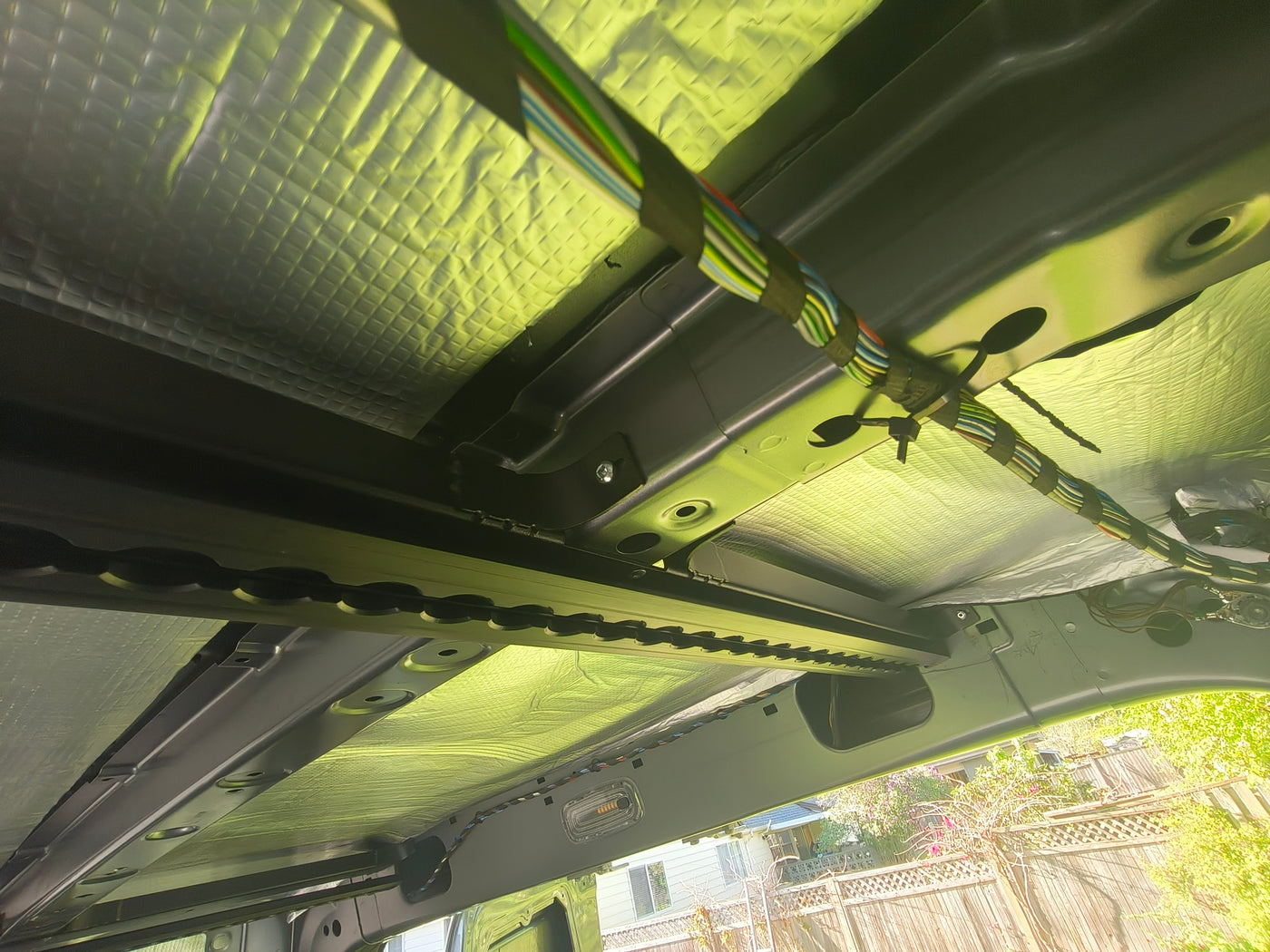

Factory Crossbeam Mount

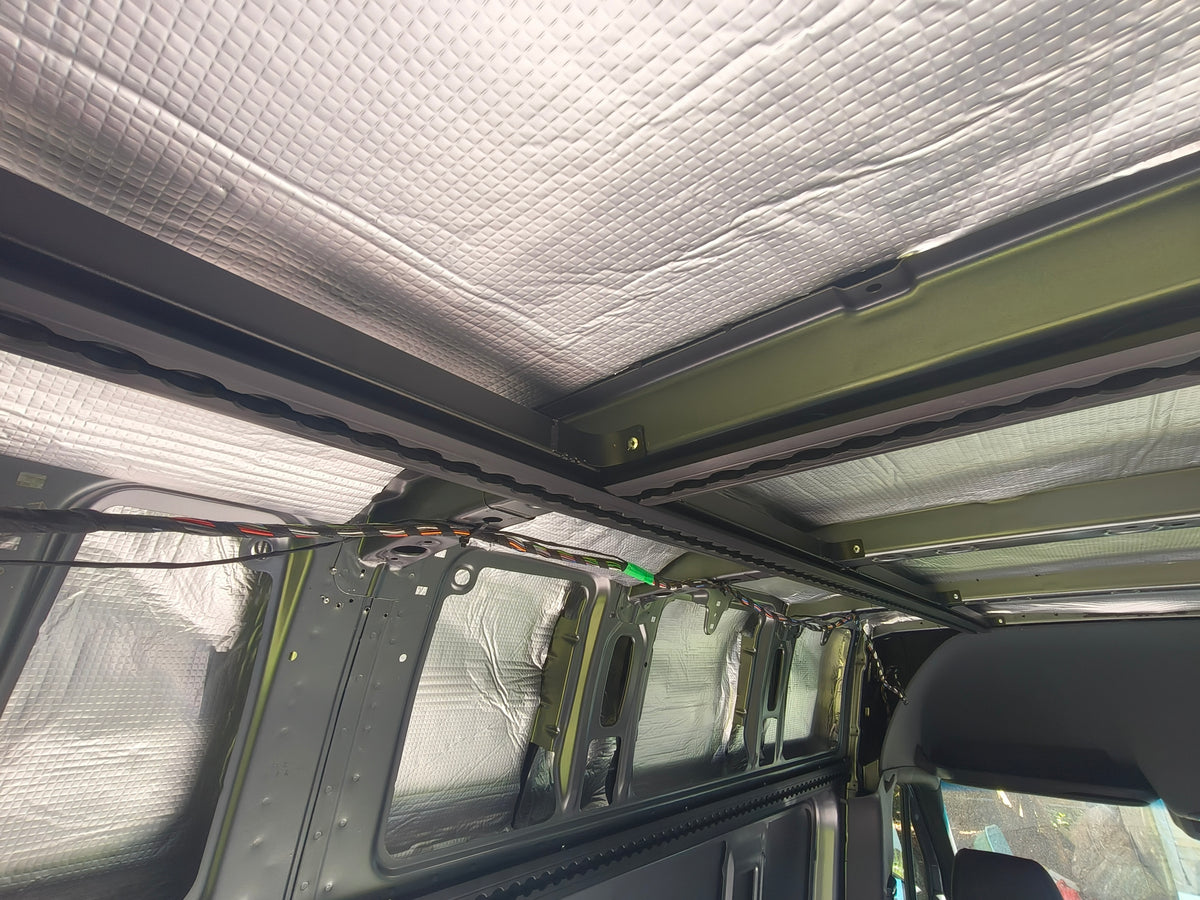

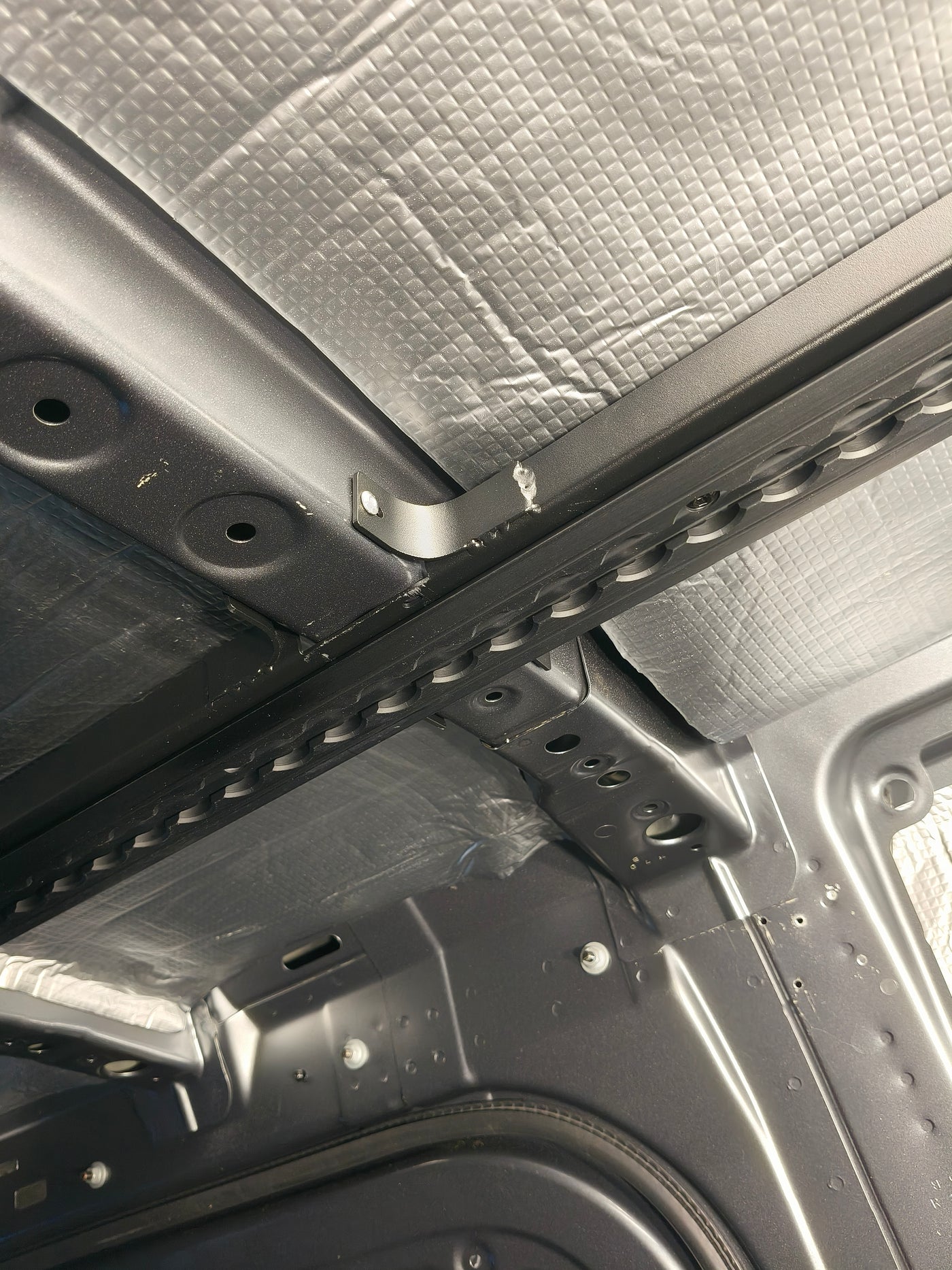

Load-spreading plates anchor into the Sprinter's factory roof crossbeam structure — force transfers through existing reinforcement, not bare sheet metal.
6061-T6 Aluminum L-Track
Robust mounting rail for securing cabinets, panels, cargo, and other interior components inside your van.
Pairs with Wall Kit
Designed to extend the side wall L-Track anchor grid overhead — complete interior coverage.

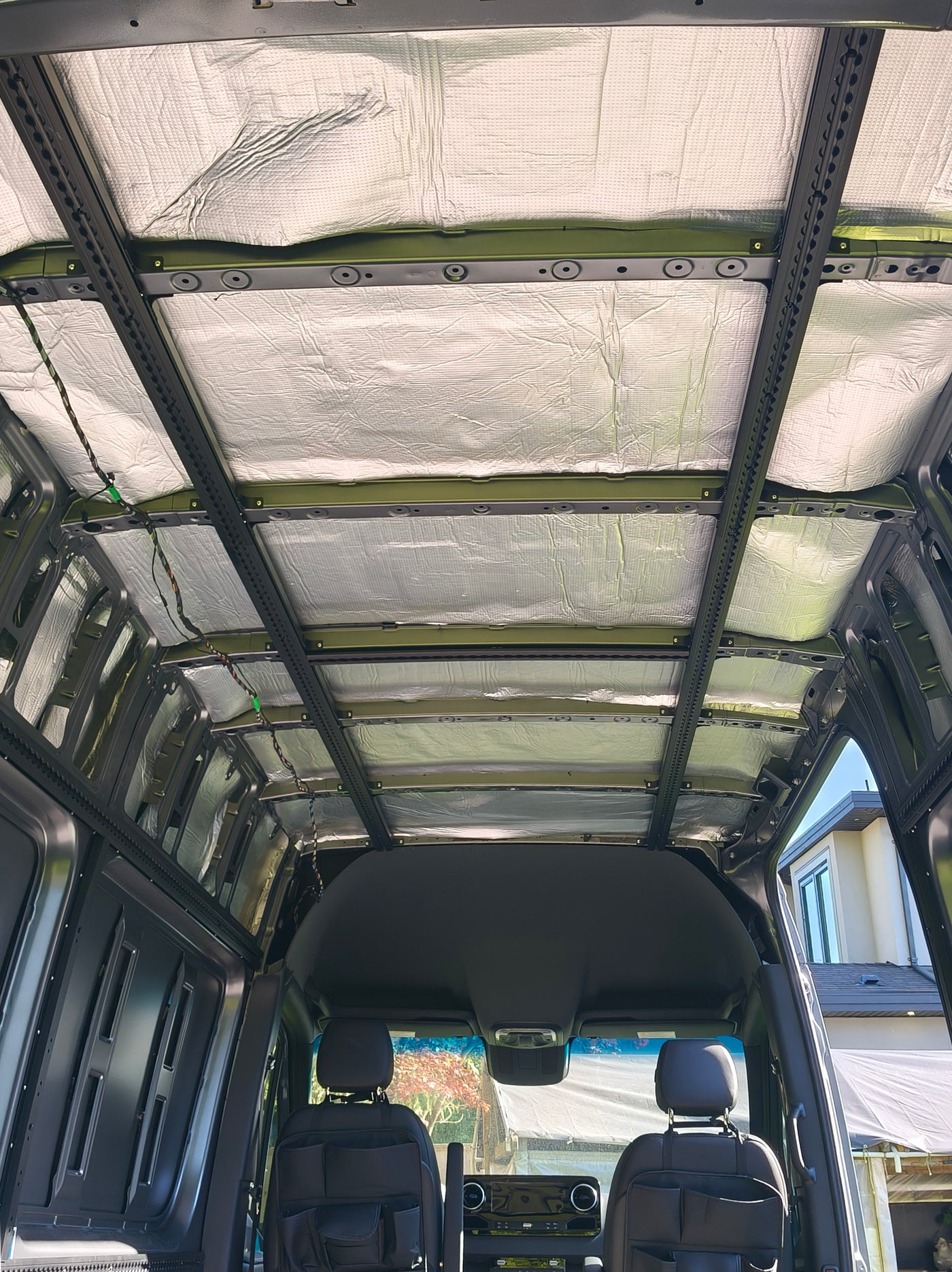

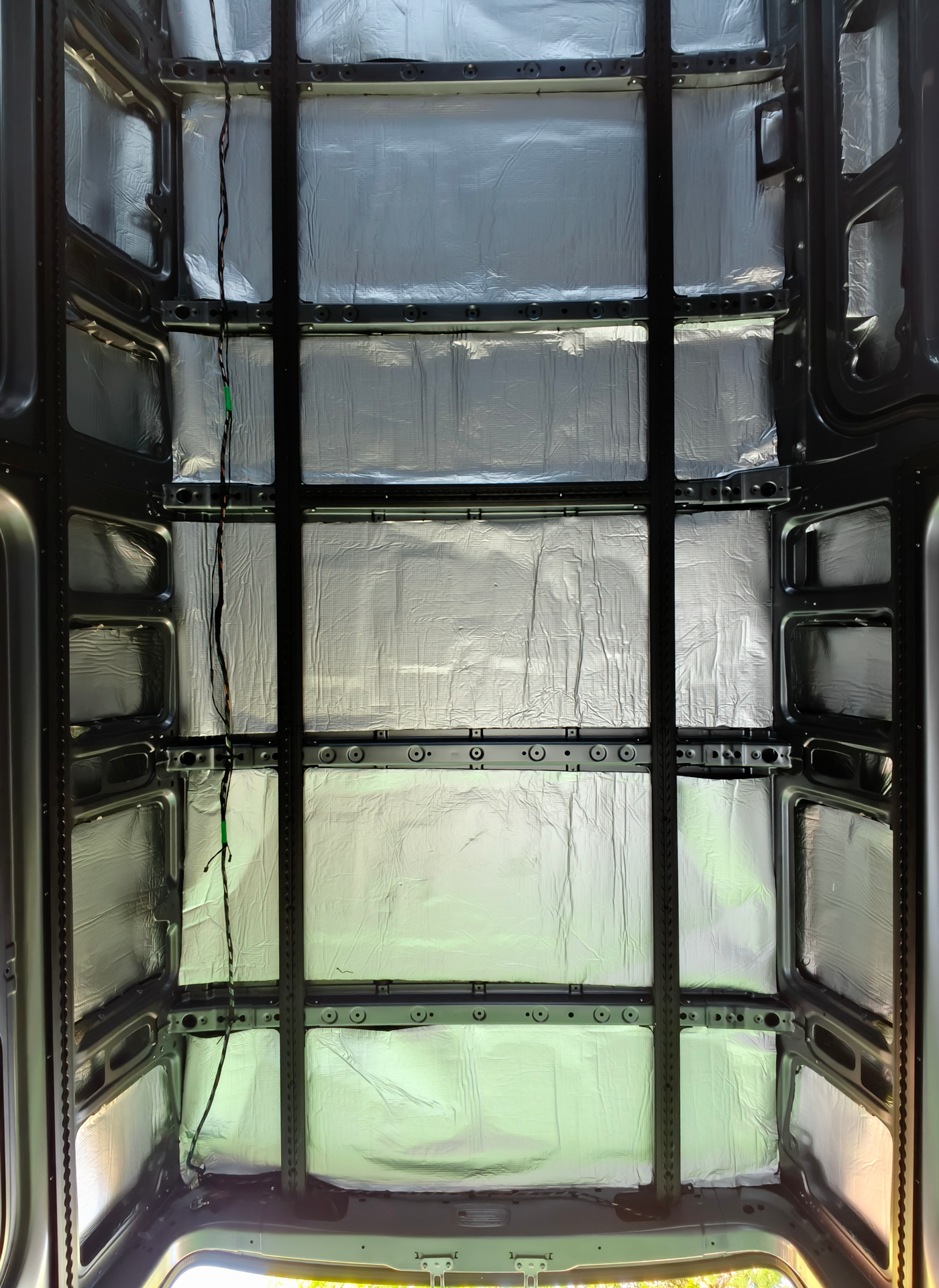

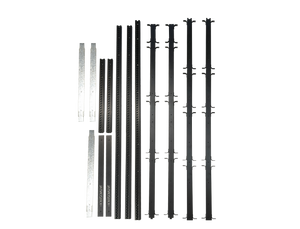

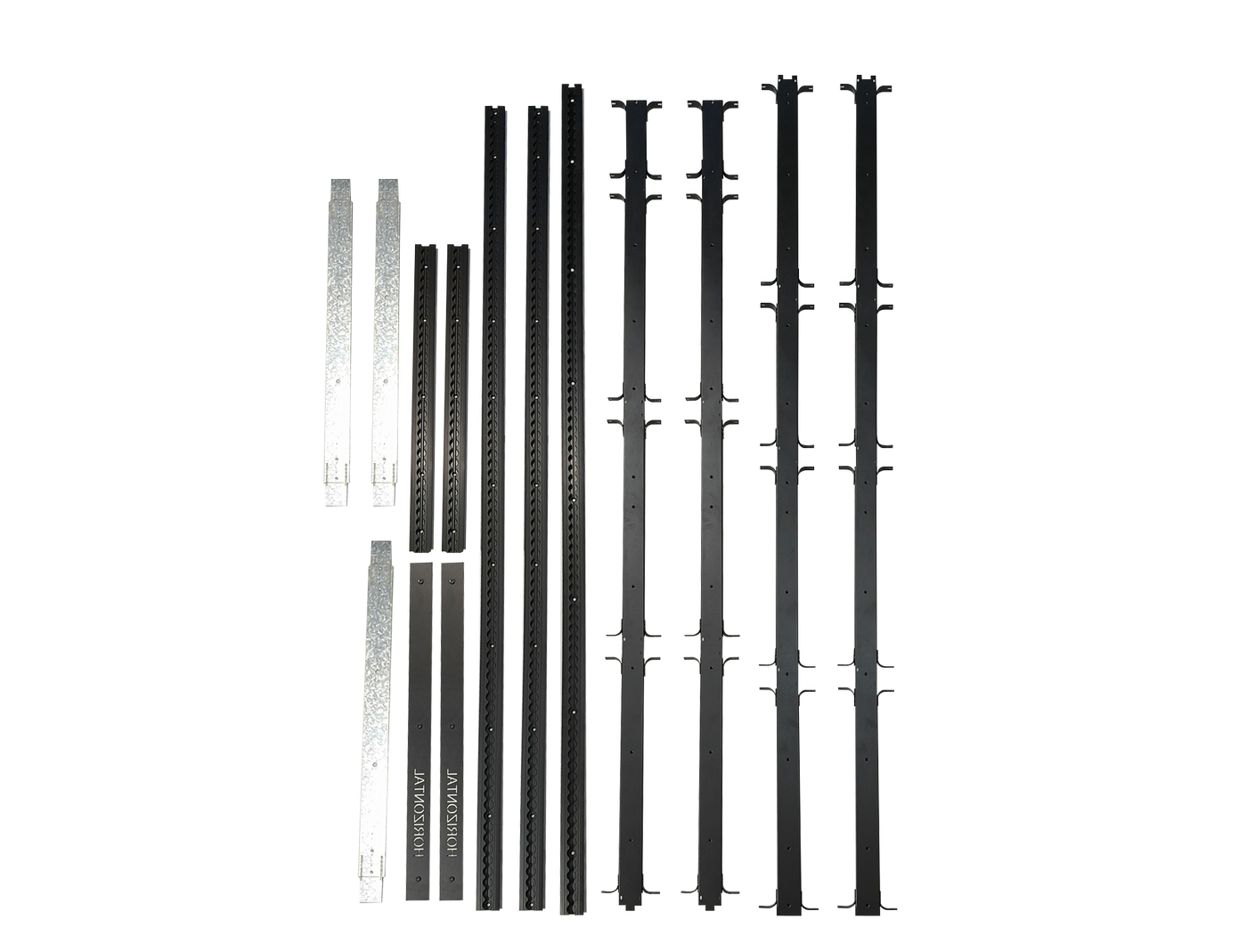

Ceiling plate — full system with L-Track

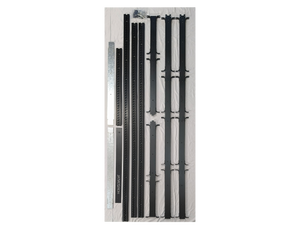

02 — Ceiling Kit

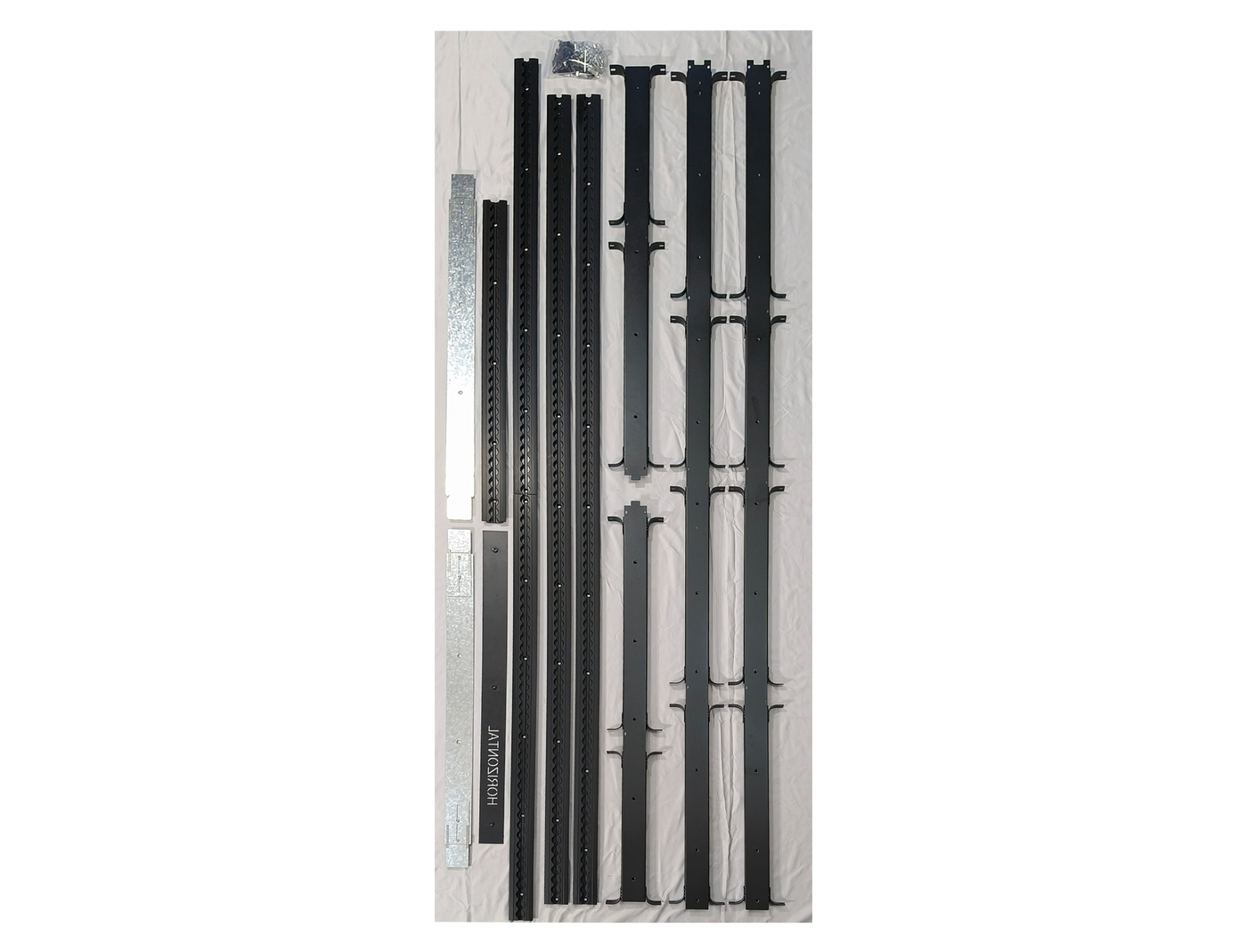

144″ / 170″ Wheelbase Kits
Mounts to factory Sprinter roof crossbeams with load-spreading plates that create a rigid backbone across the full ceiling length. Built to support beds, overhead cabinets, fan shrouds, and other ceiling-mounted components.
Full Specifications
| SKU | I-FX-Z-MLK-C-144 / -170 |
| Material | 6061-T6 aluminum, anodized |
| L-Track Compatibility | Universal — single & double stud |
| Mounting Method | Factory roof crossbeams |
| Single Point Load Limit | 77 lb (35 kg) |
| Full Backplate Load Limit | 441 lb (200 kg) |
| Wheelbase | 144″ and 170″ |
| Compatibility | 2019+ Mercedes-Benz Sprinter |
| Hardware | Complete fastener kit included |
L-Track System
The Wall and Ceiling Kits are sold and shipped through tecvan.com. Every successful Sprinter build starts here.
Shop the L-Track System →
