Three Series
Three series built on the same platform. 1.75" coated aluminum tube. 400 lb rated. Fits 144" and 170" wheelbases. Select by footbed profile and coverage — Hexagon anti-slip, three-piece Modular, or single-piece Full Length.

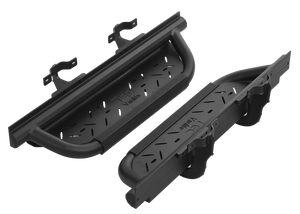

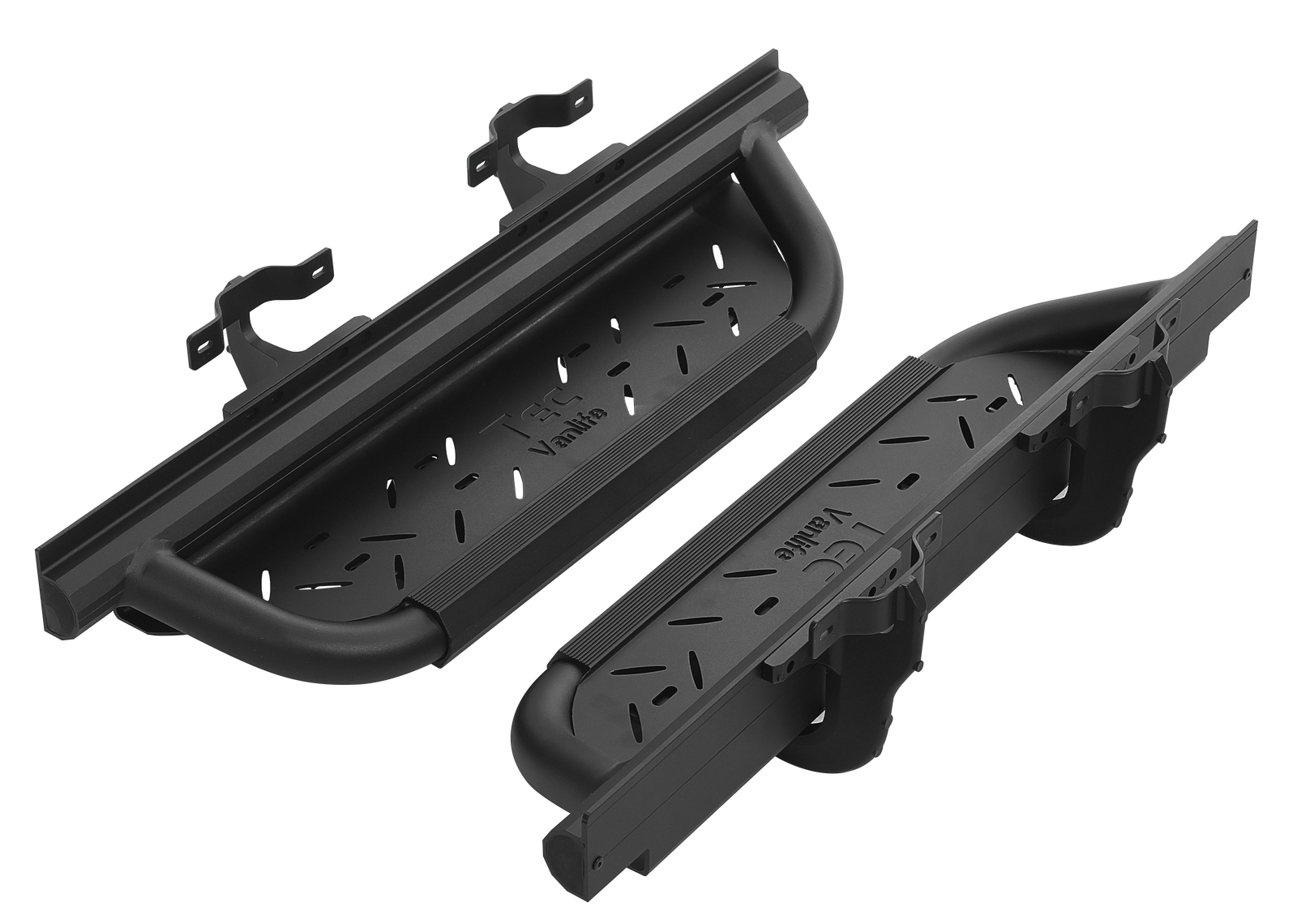

7.66" ribbed footbed with anti-slip pattern. 1.75" coated aluminum tube. Three-piece modular layout.
↓
Three-piece layout — driver, passenger, sliding door. 6.30" footbed. TIG-welded brackets.
↓
Single-piece board per side. 103.9" for 144" wheelbase, 130.7" for 170". 6.30" footbed.

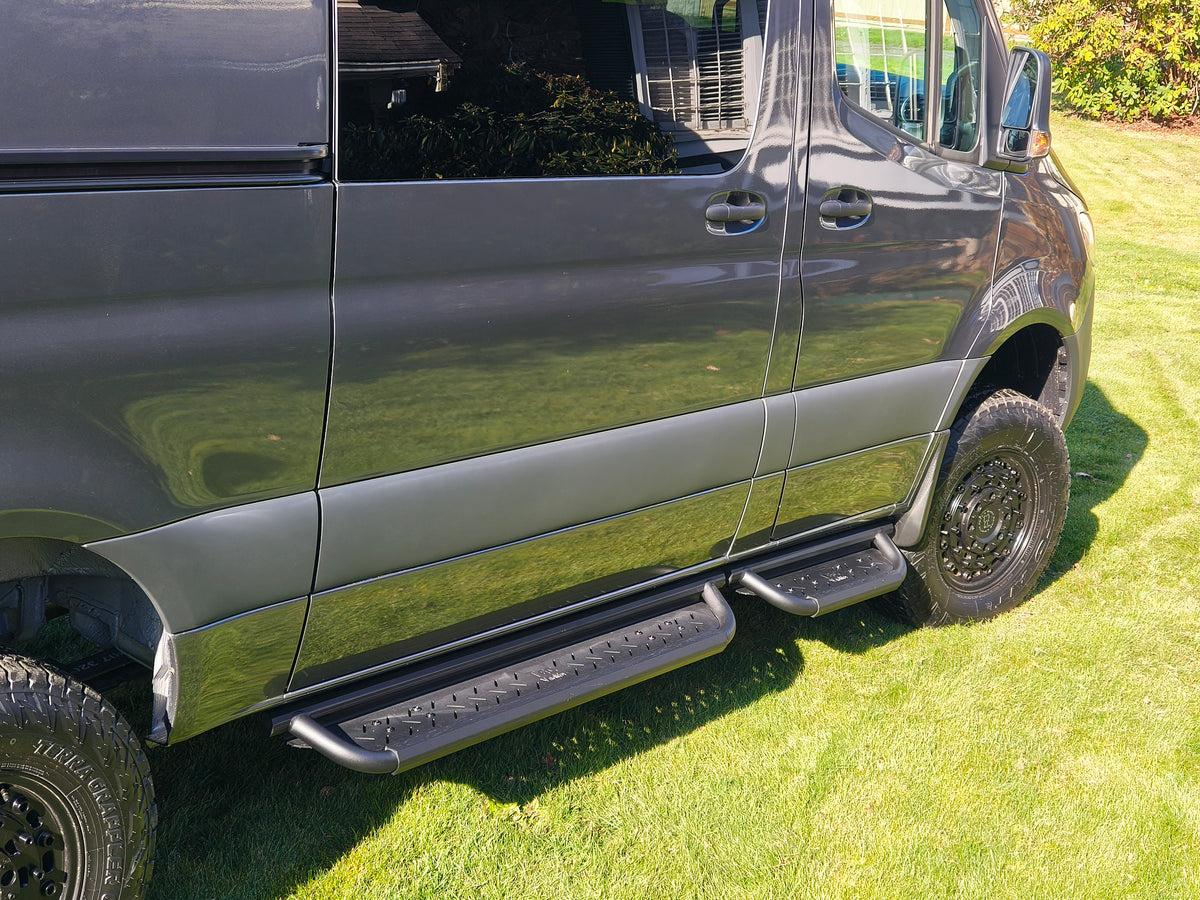

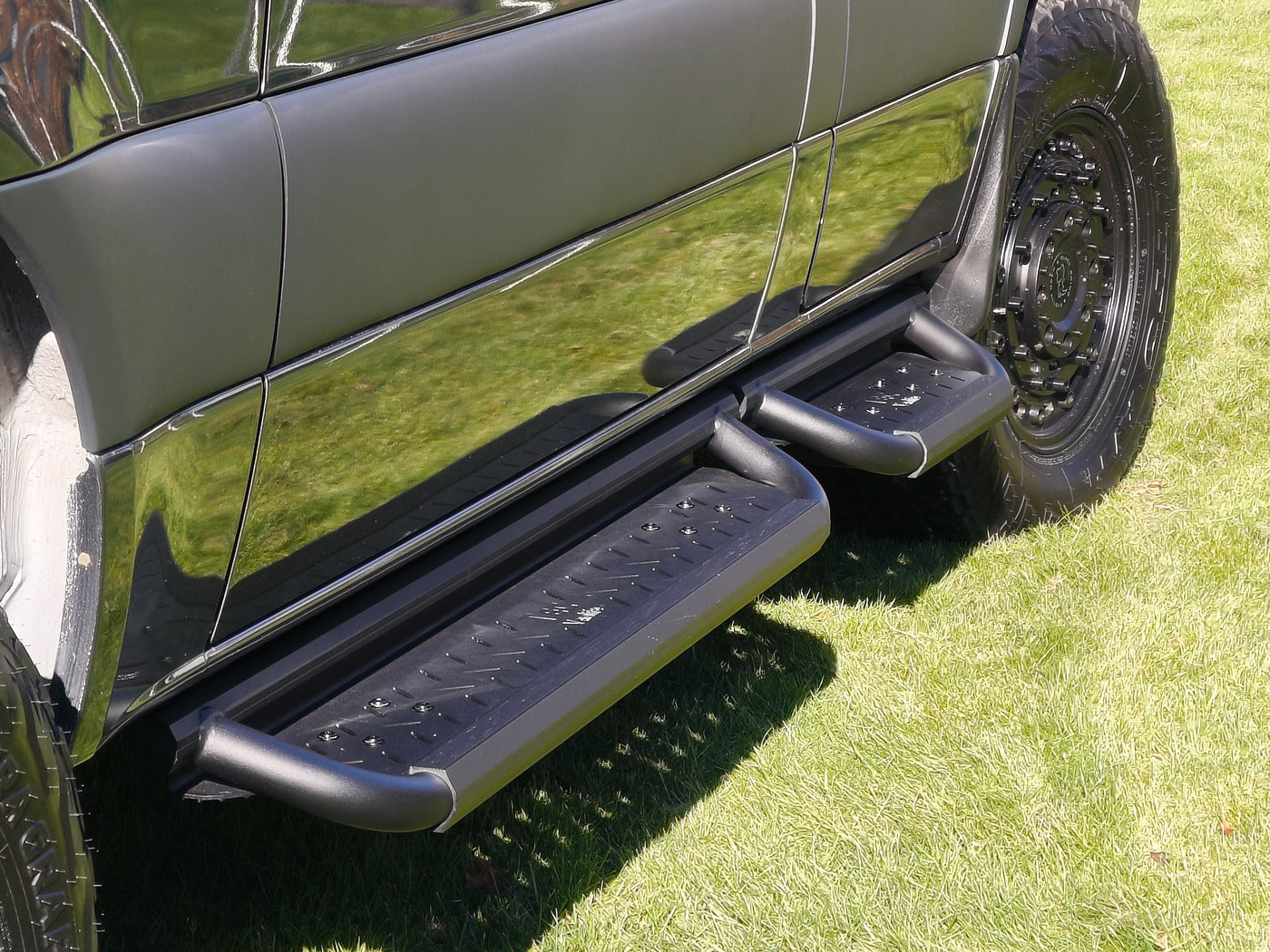

↓Hexagon — driver / passenger step
Series Features

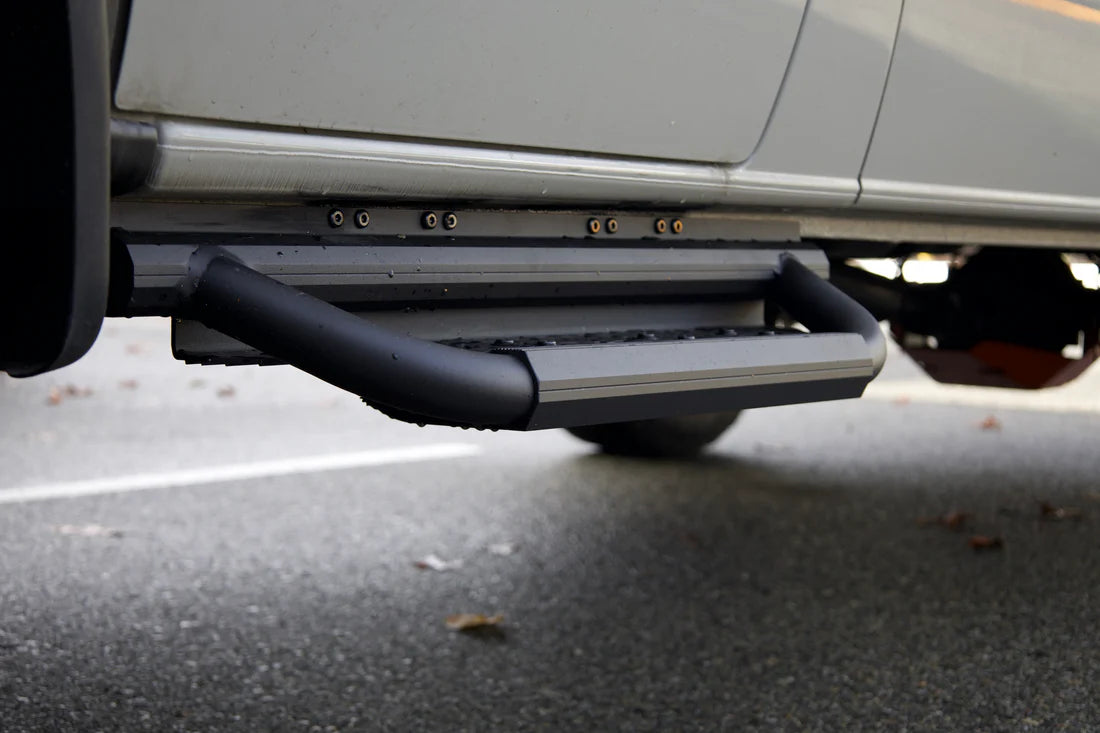

Ribbed Anti-Slip Surface
Ribbing across the full 7.66" footbed for traction in wet, snow, or mud conditions.
7.66″ Stepping Platform
Wide footbed sized for work and hiking boots. 33" driver and passenger steps, 61.5" sliding door step.
1.75″ Coated Aluminum Tube
Coated aluminum for corrosion resistance. Rated to approximately 400 lb per step.
Molded Brackets with Bended Tabs
Tabs bend to conform to factory rocker panel.

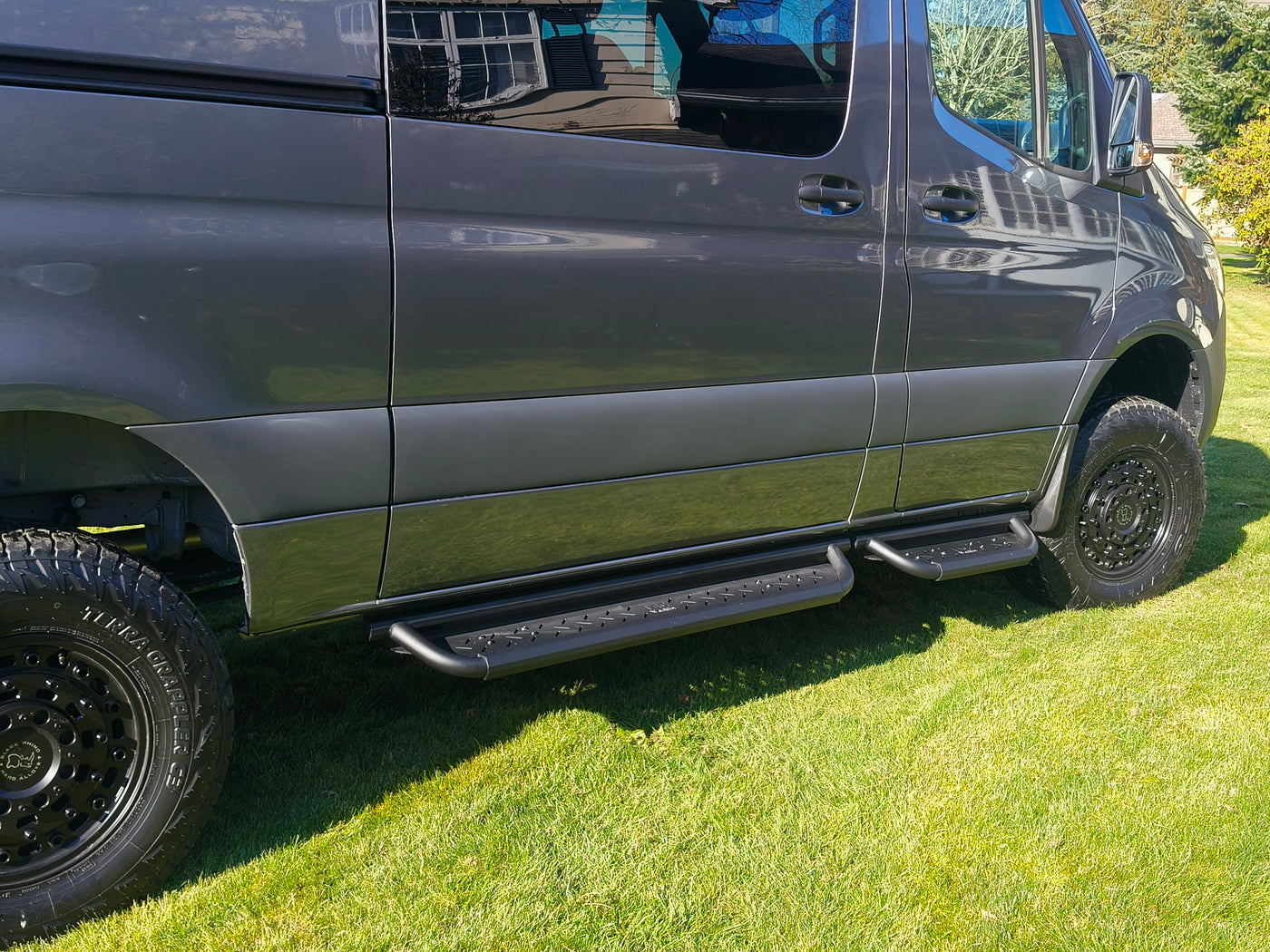

Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only — no underbody modification.

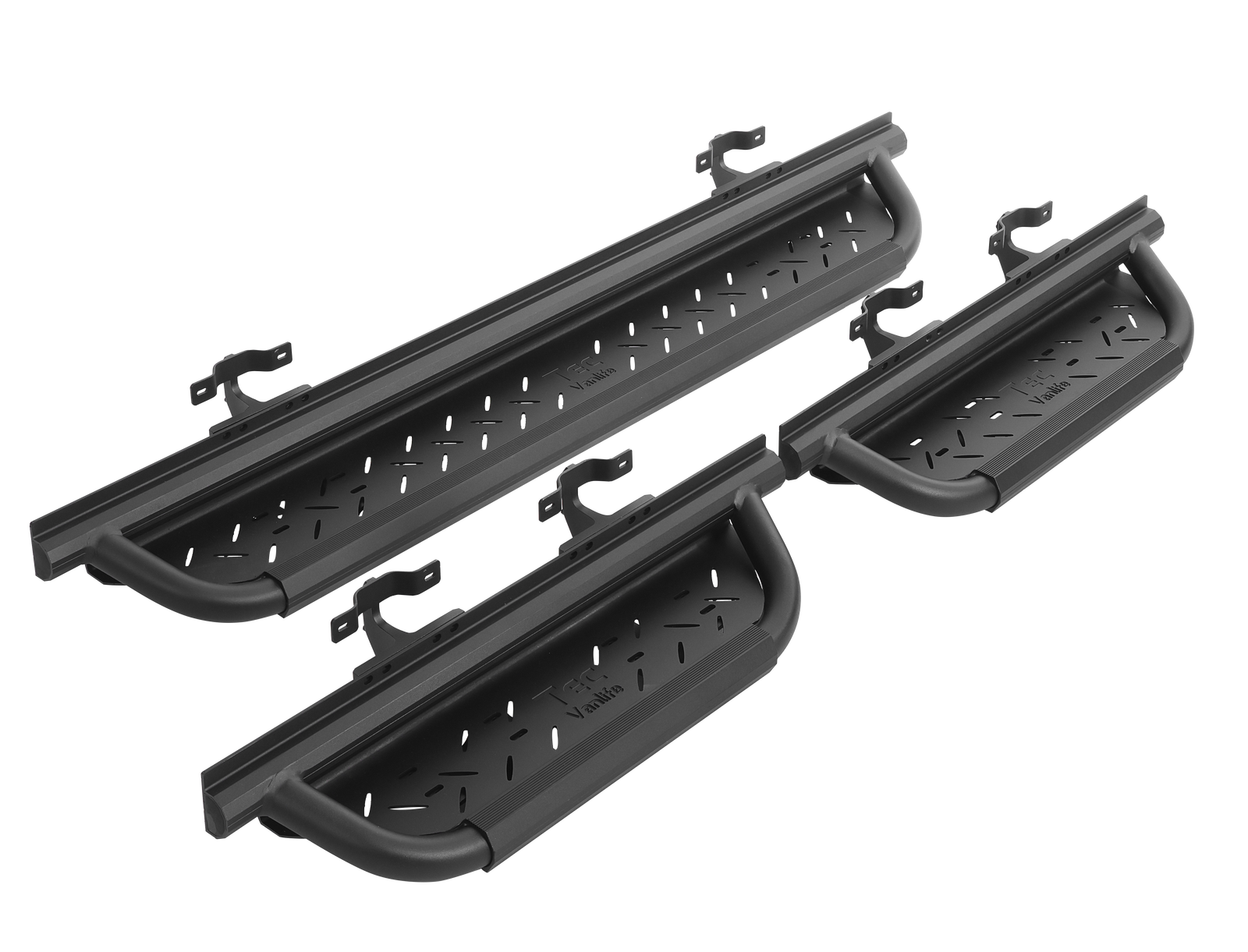

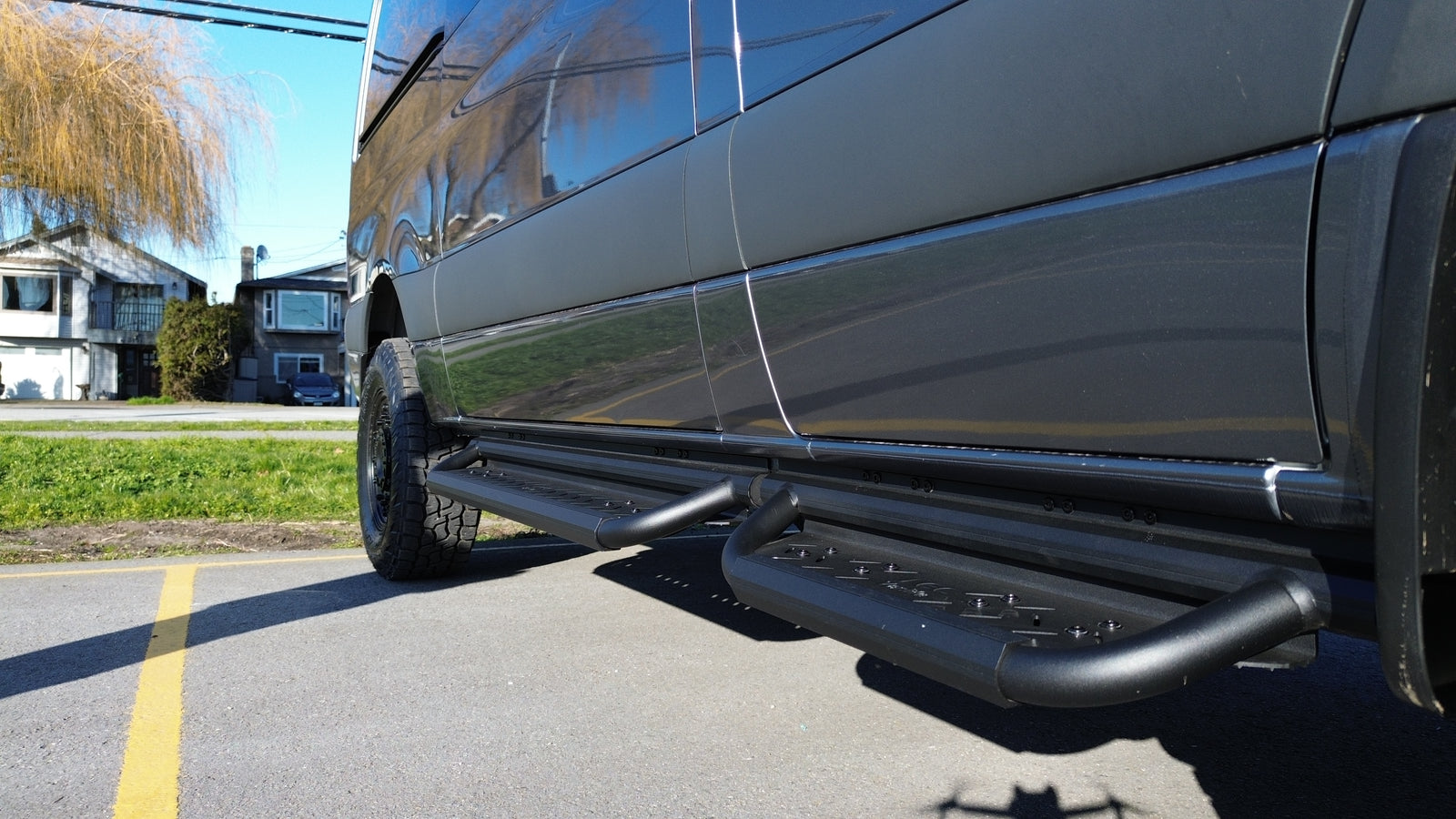

01 — Hexagon Series
$1,499 · 3-Piece Set

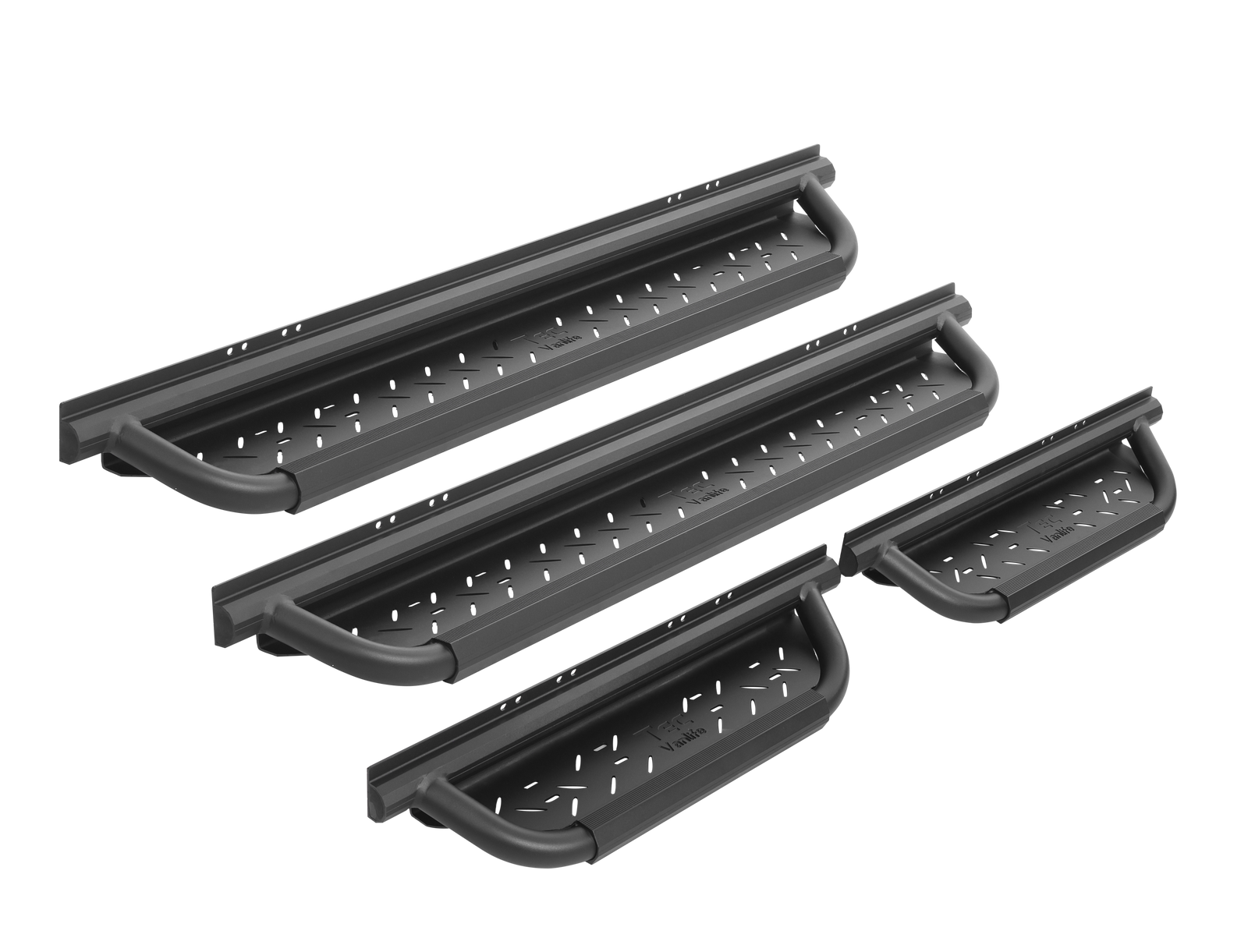

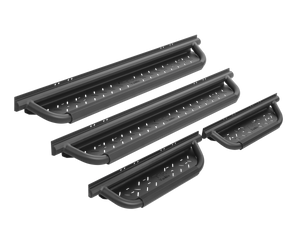

Three-piece drop-down running boards with a ribbed anti-slip footbed. Driver, passenger, and sliding door steps on a 1.75" coated aluminum tube. 7.66" footbed. Available in 2-piece, 3-piece, or 4-piece configurations.
Full Specifications
| SKU | E-HW-T-DRB-M-3PC |
| Material | Coated aluminum |
| Tube Diameter | 1.75″ |
| Footbed Width | 7.66″ (195 mm) — ribbed anti-slip |

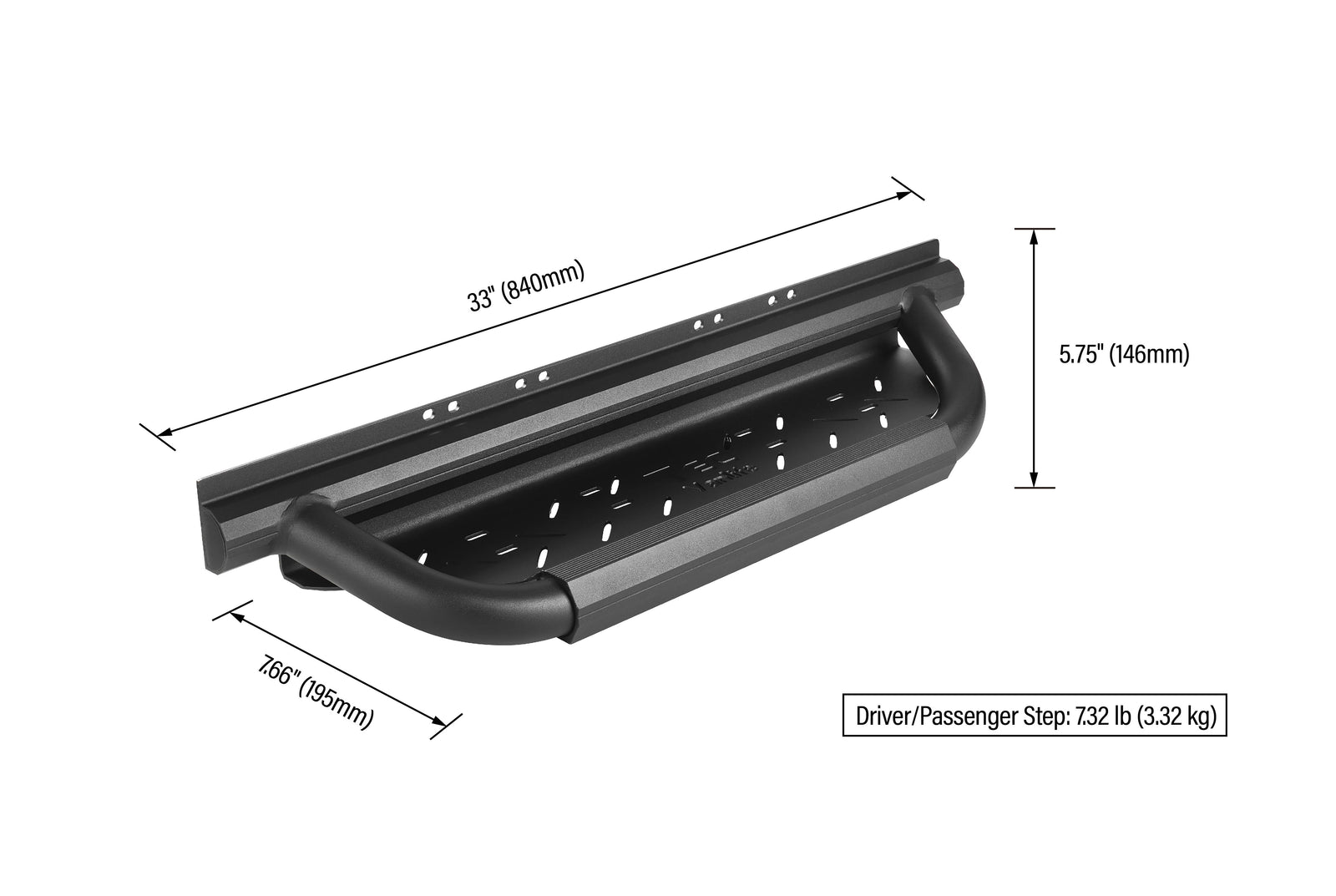

| Driver / Passenger Step | 33″ × 7.66″ × 5.75″ · 7.32 lb |

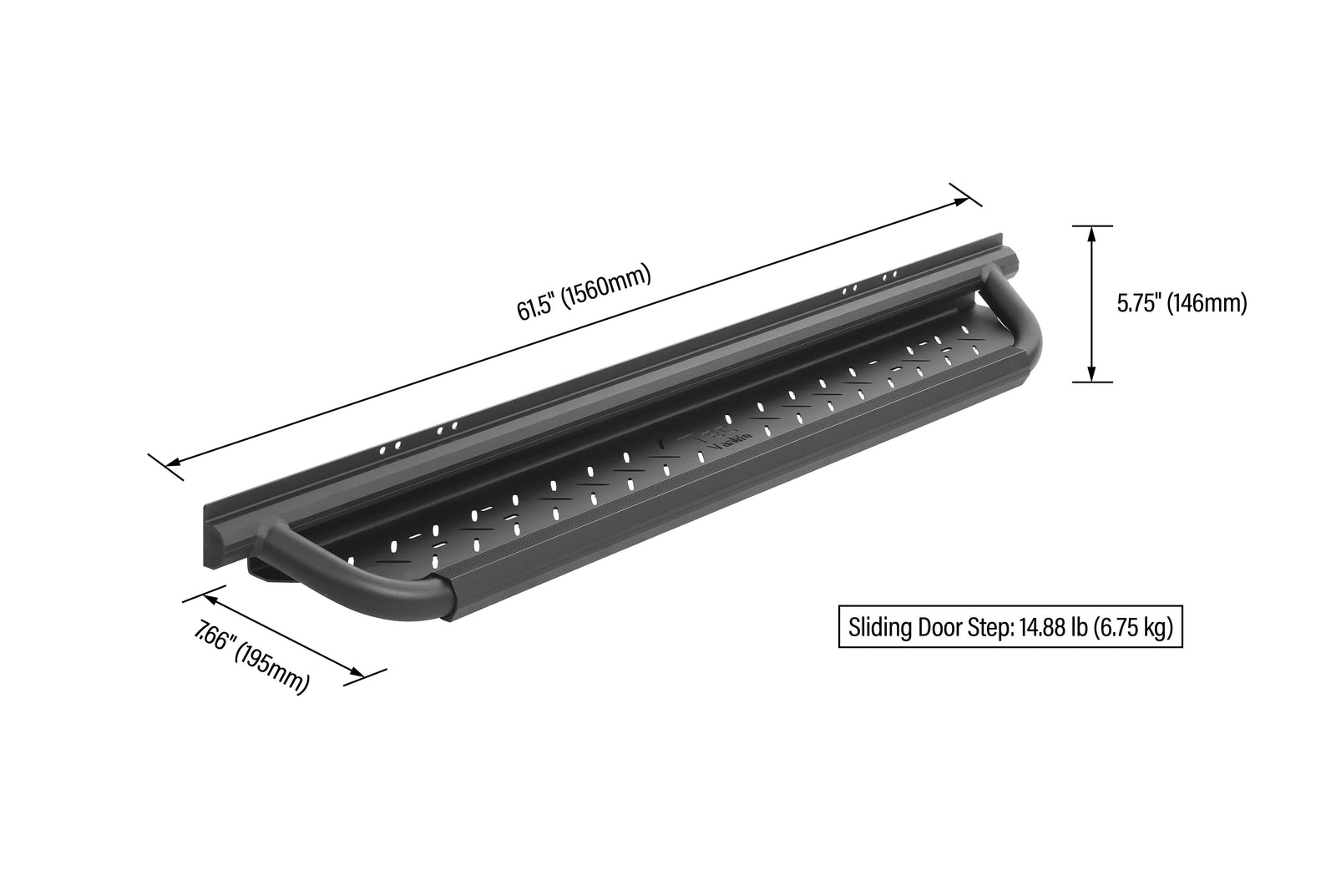

| Sliding Door Step | 61.5″ × 7.66″ × 5.75″ · 14.88 lb |
| Support Bracket | 1.48 lb, molded, bended tabs |
| Weight Capacity | ~400 lb |
| Ground Clearance Reduction | ~6–8″ |
| Install | ~2 hr, single person, drill & basic hand tools |
| Set Options | 2-piece, 3-piece, or 4-piece |
| Wheelbase | Fits 144″ and 170″ |
| Compatibility | 2007+ Mercedes-Benz Sprinter |

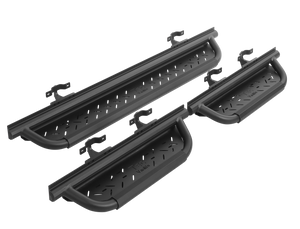

02 — Modular Series
Three pieces.
Three bracket sets.
Driver, passenger, and sliding door steps each mount on independent brackets. Install, adjust, or replace a single piece without removing the others.
Series Features
Independent Three-Piece Layout
Driver, passenger, and sliding door steps each mount on dedicated brackets. Replace a single piece without removing the others.
TIG-Welded Brackets
Welded support brackets with bended tabs for undercoating clearance. 400 lb rated platform.
Configurable Set
Available as 2-piece (driver / passenger), 3-piece (adds sliding door), or 4-piece (adds second sliding door step).

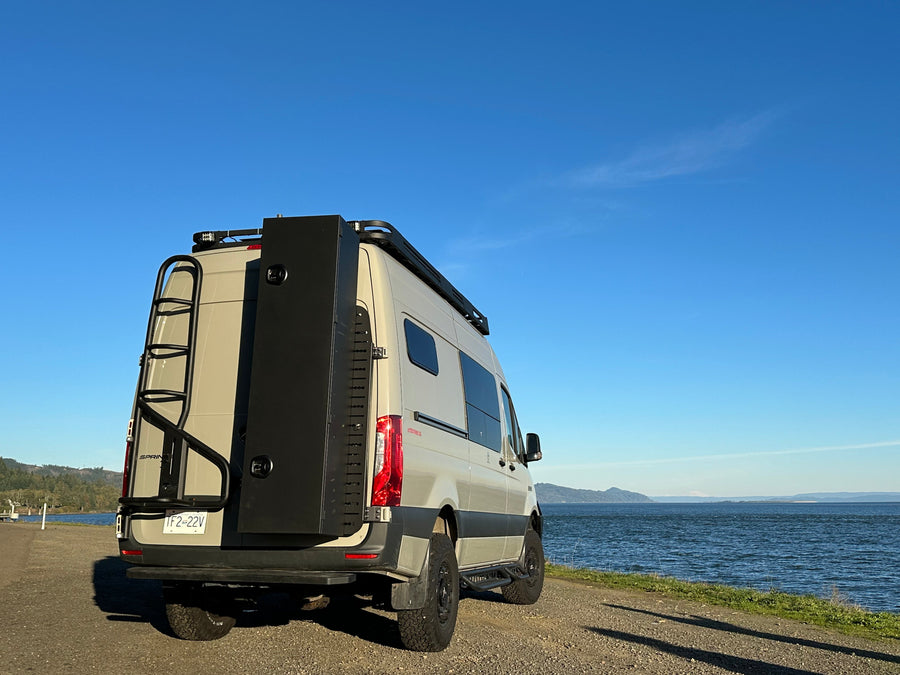

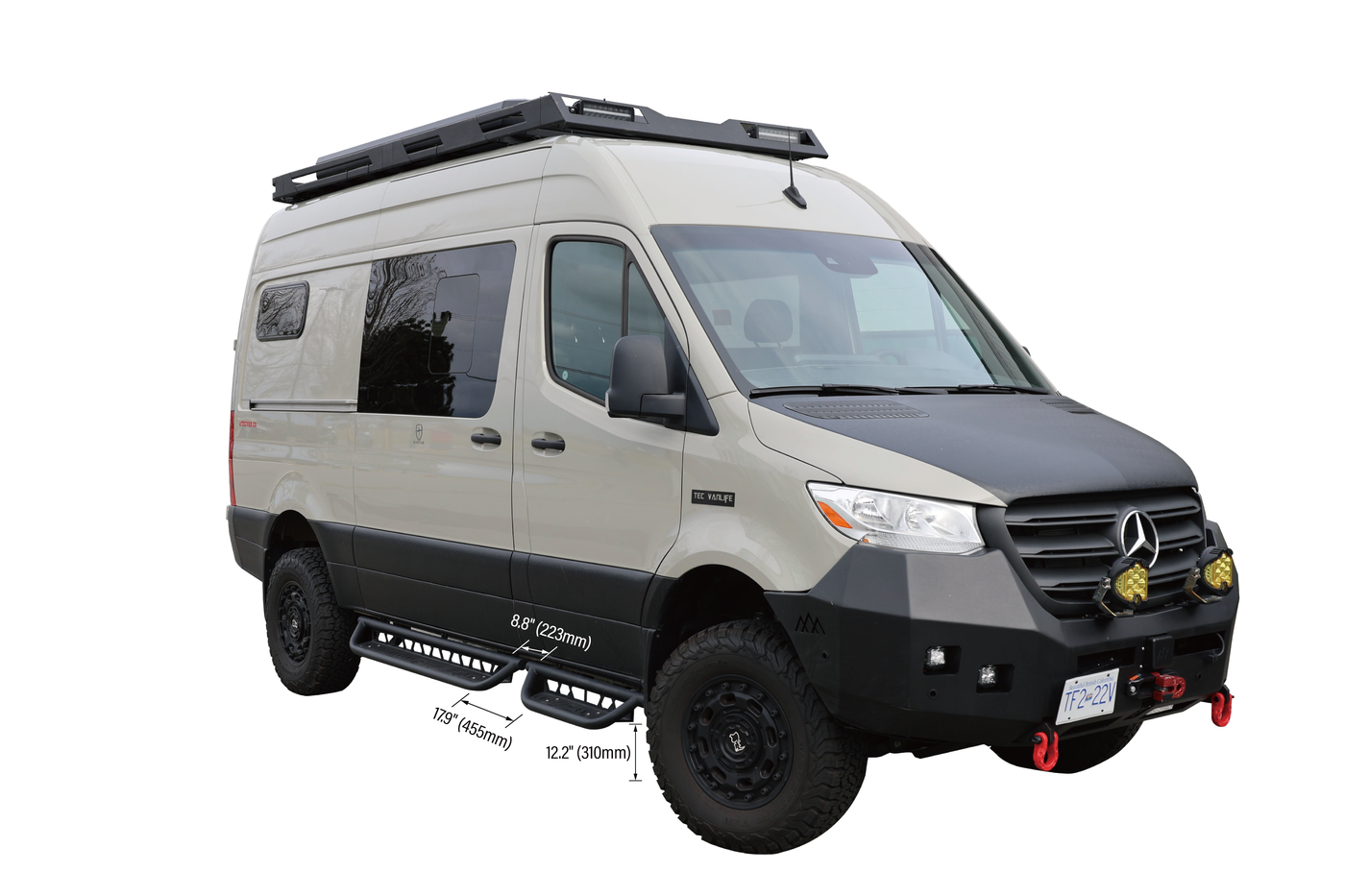

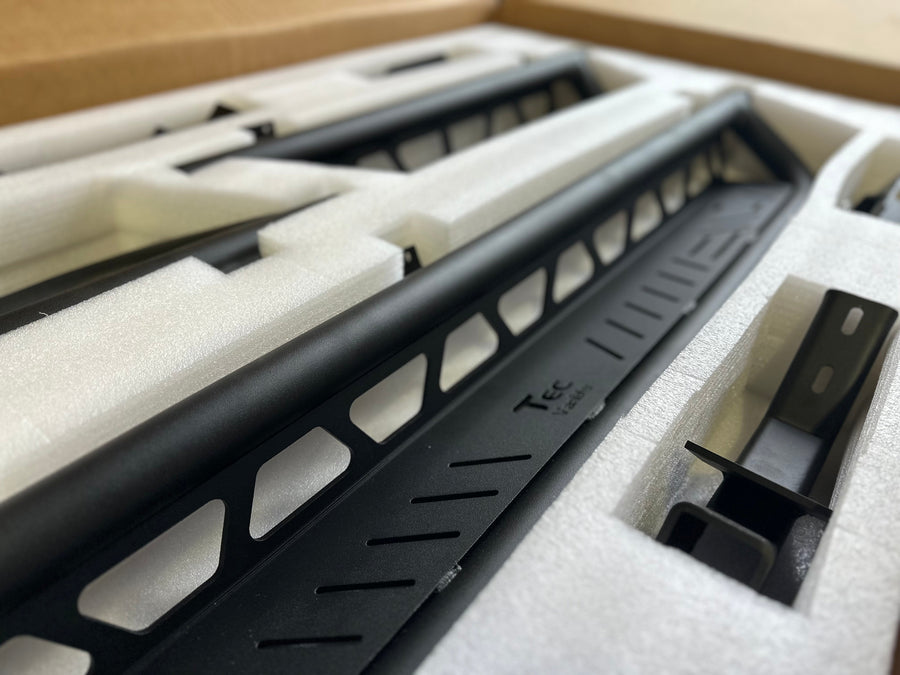

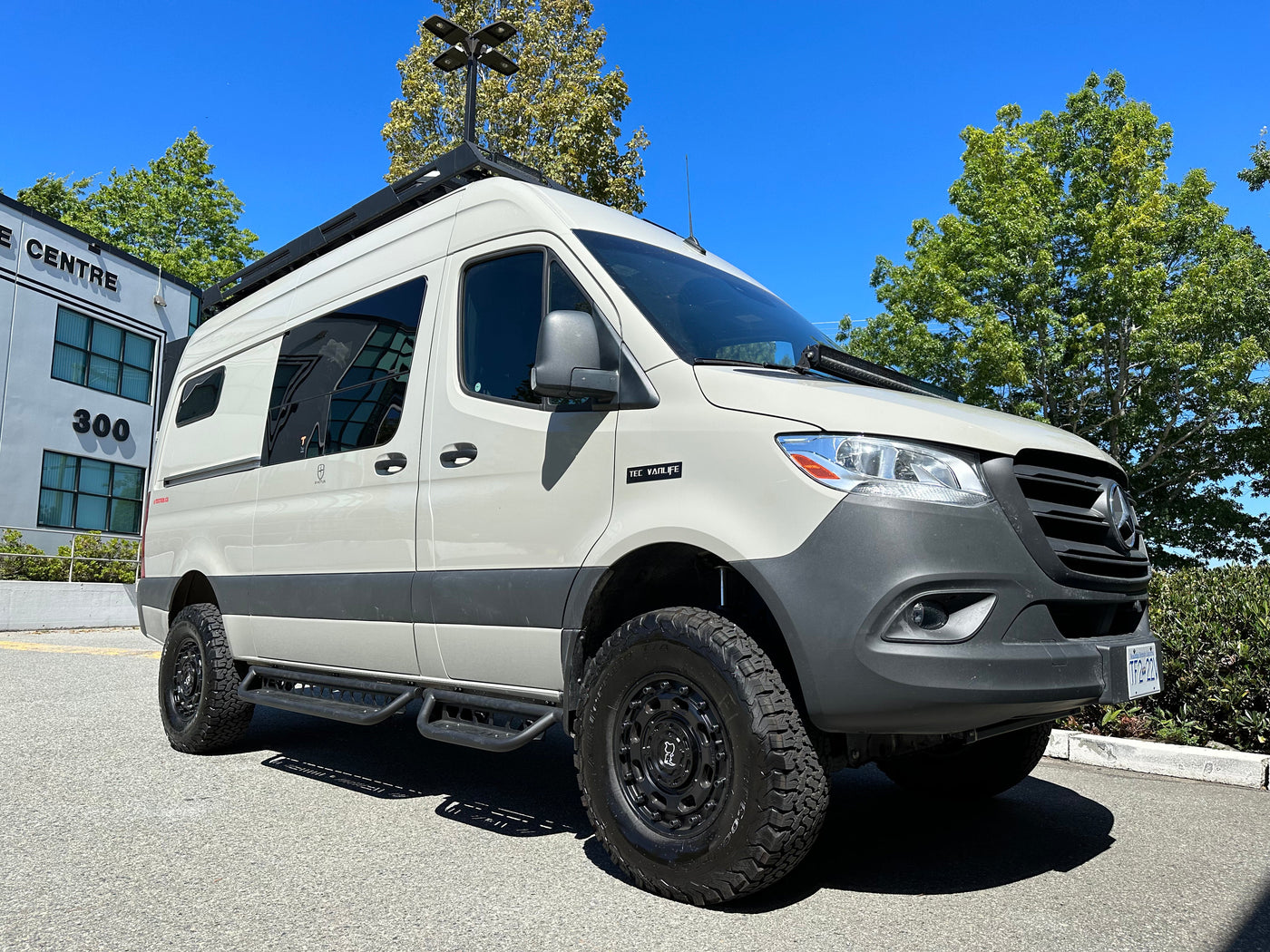

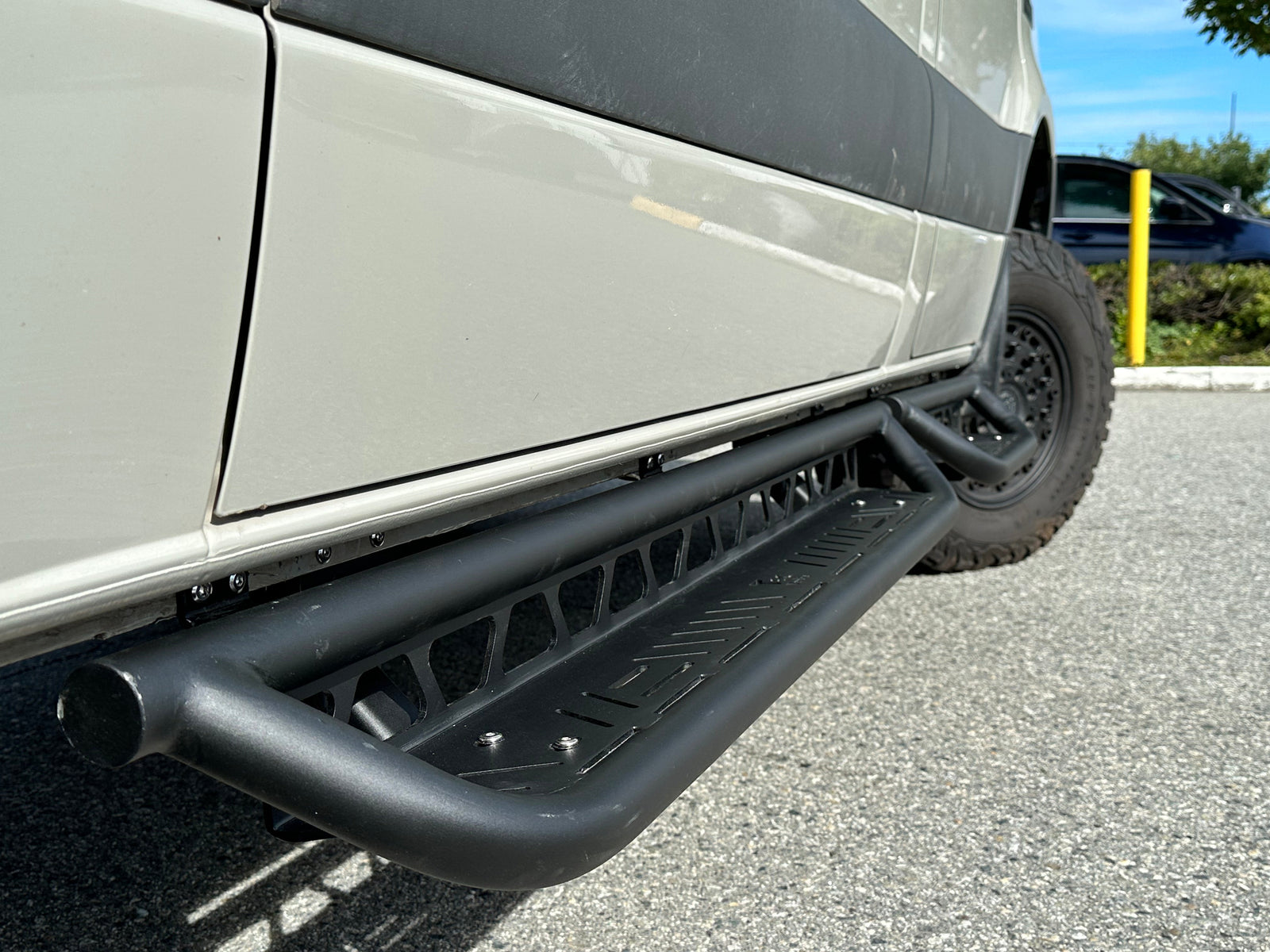

Modular — driver / passenger step

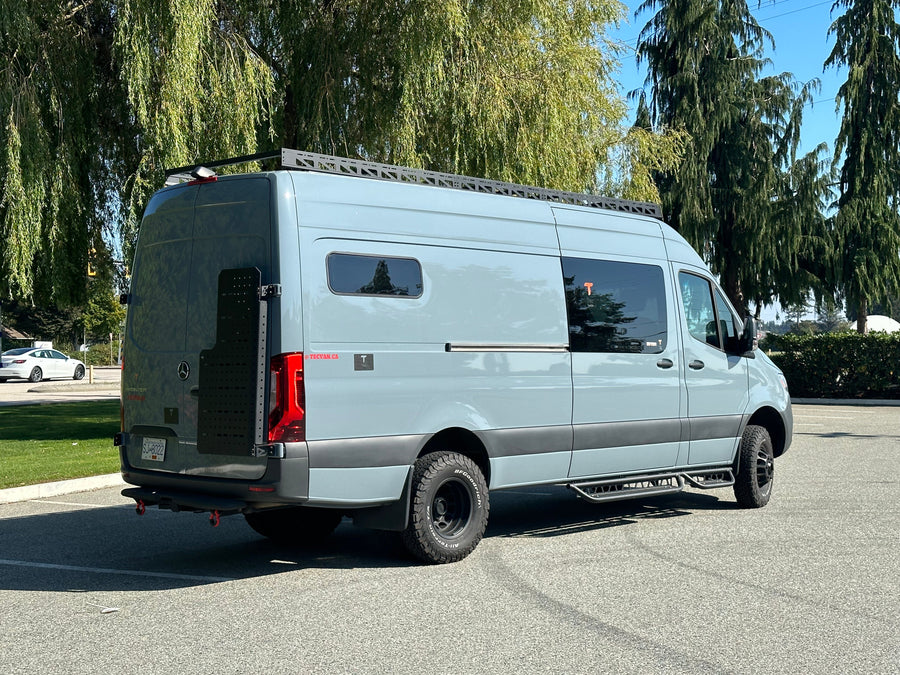

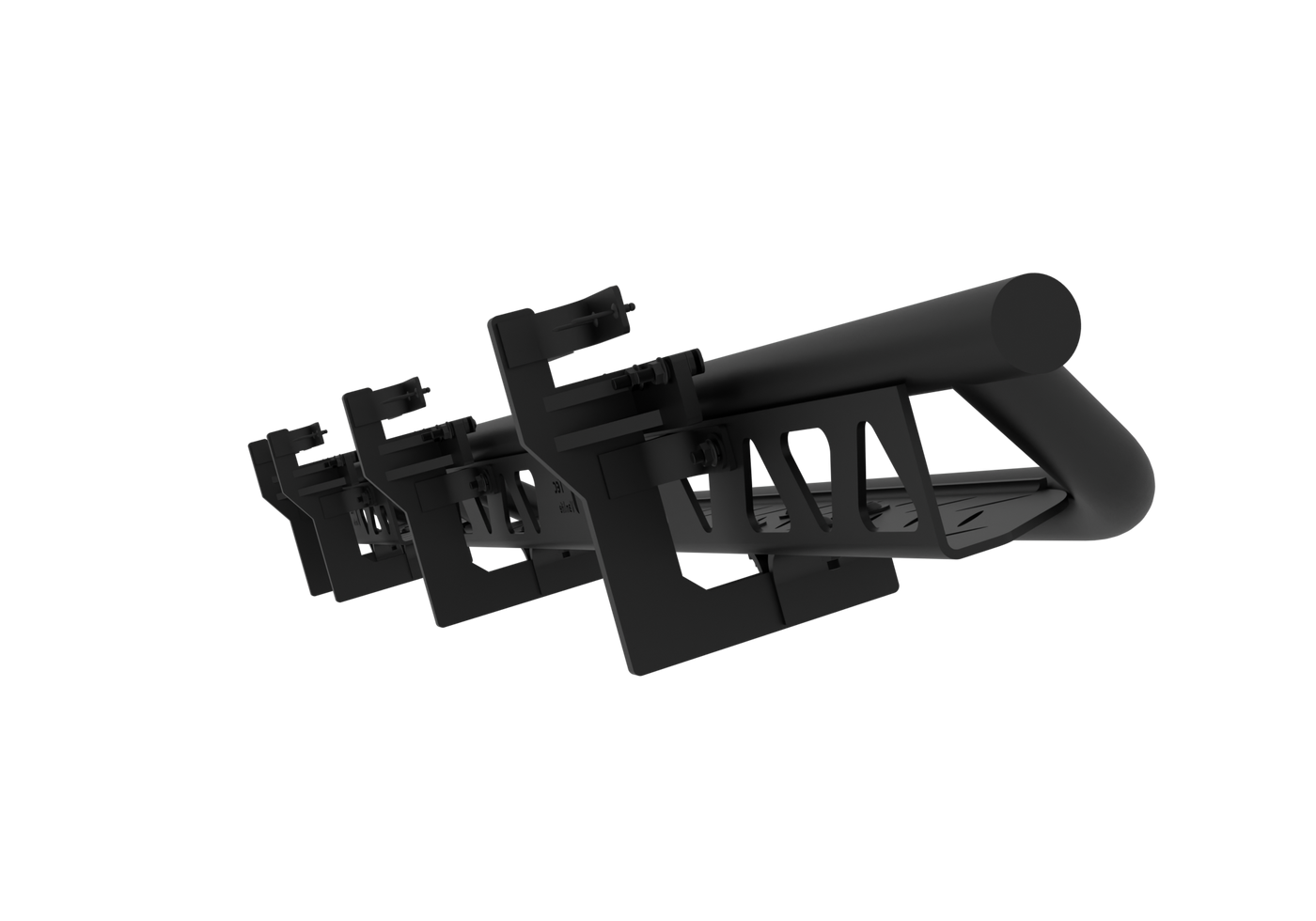

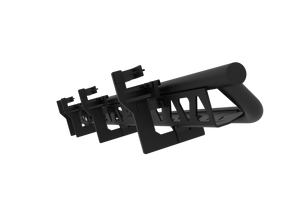

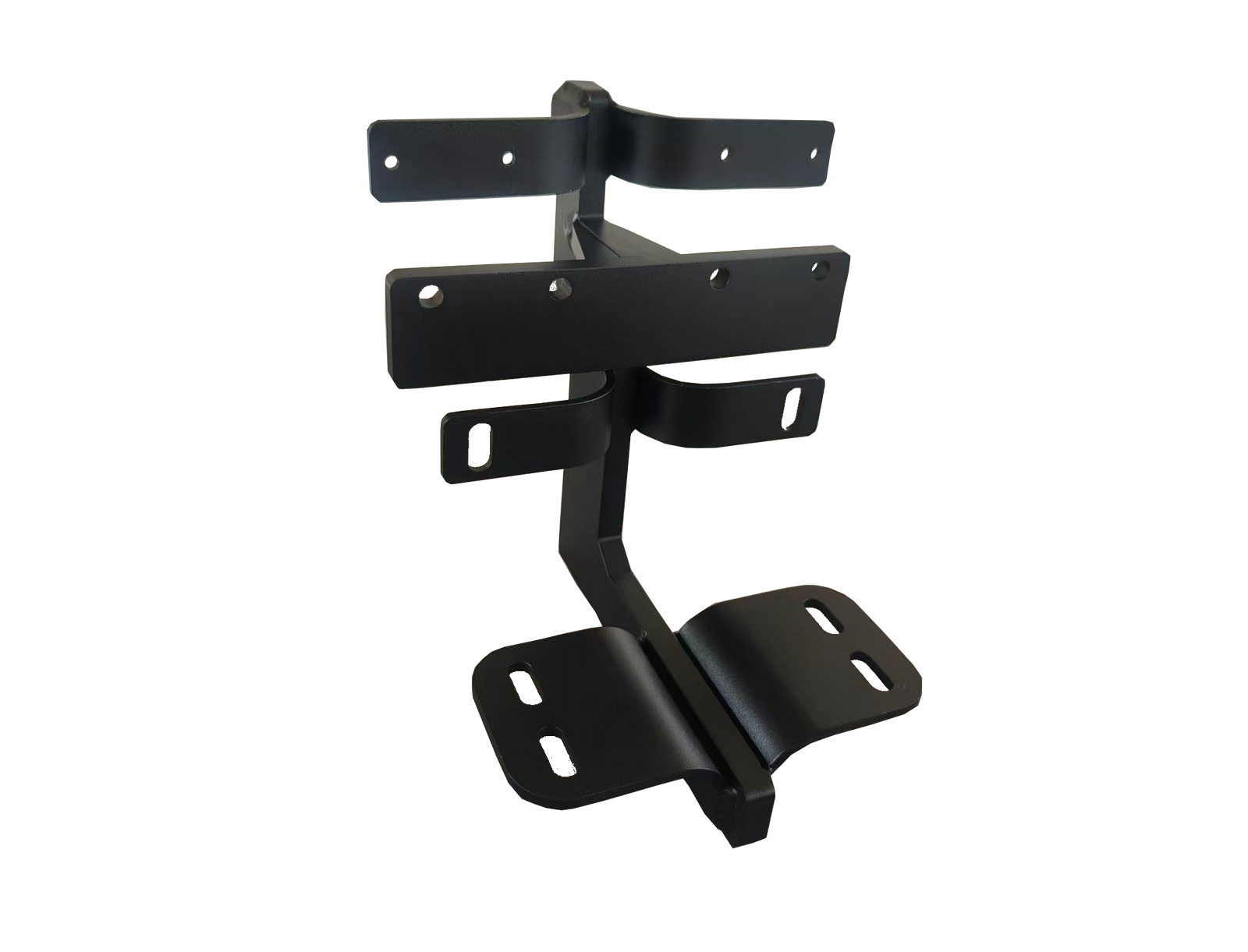

Bracket & Tube Detail
TIG-Welded Brackets
Welded brackets carry the load. Coated aluminum tube forms the stepping surface.
1.75″ Aluminum Tube
Coated aluminum for corrosion resistance. 6.30″ footbed. Rated to approximately 400 lb per step.
Bended Bracket Tabs
Tabs bend to clear factory undercoating. No grinding or surface prep required.
Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only.
Independent Replacement
Each step mounts independently. Service or replace individual pieces without removing the rest of the system.
02 — Modular Series
$1,399 · 3-Piece Set
Three-piece drop-down running board system for 2007+ Sprinter vans. 1.75" coated aluminum tube. 6.30" footbed. TIG-welded support brackets. Available in 2-piece, 3-piece, or 4-piece configurations.
Full Specifications
| SKU | E-HW-T-DRB-3PC |
| Material | Coated aluminum tube · TIG-welded brackets |
| Tube Diameter | 1.75″ |
| Footbed Width | 6.30″ |

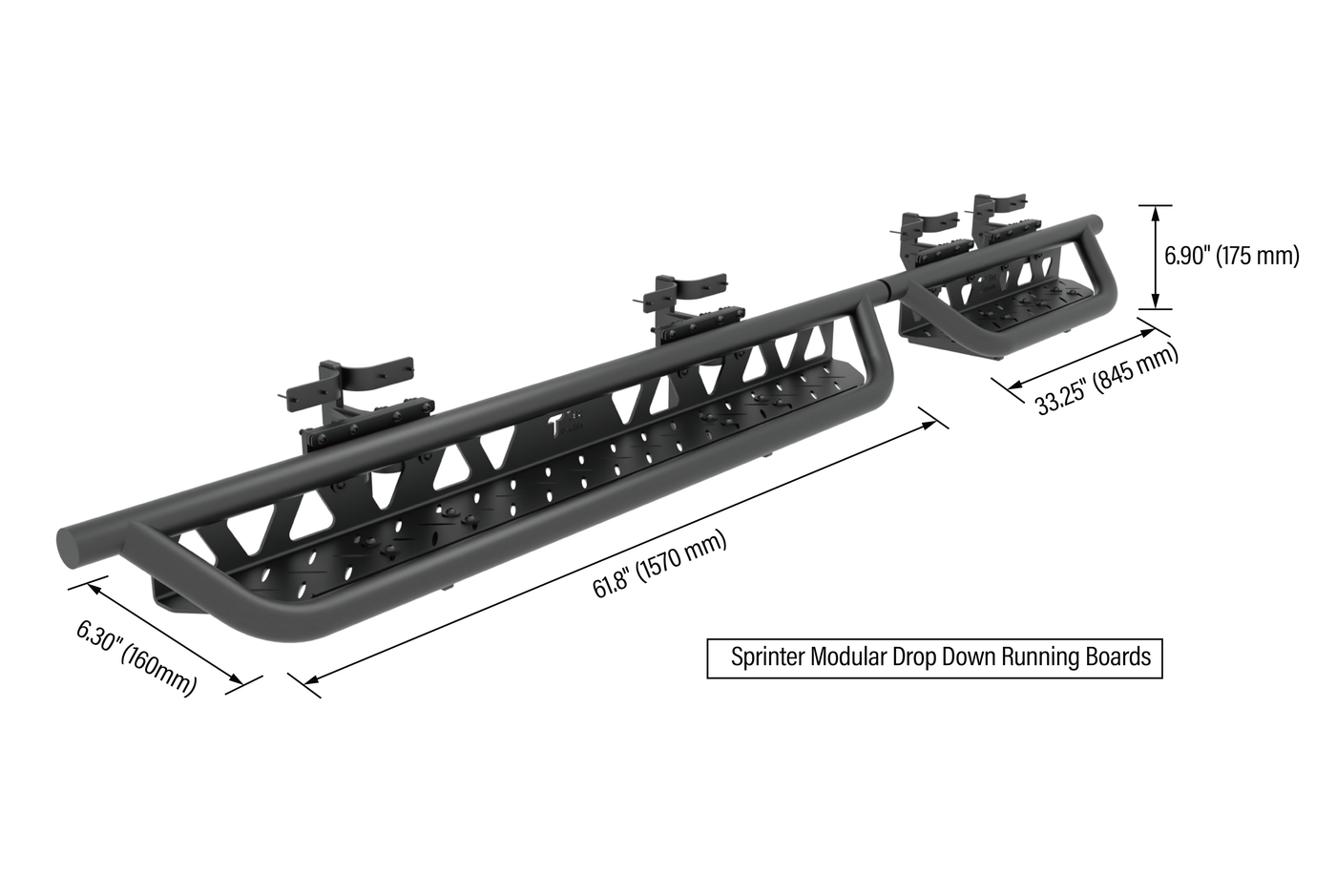

| Driver / Passenger Step | 33.25″ × 6.30″ × 6.90″ |
| Sliding Door Step | 61.8″ × 6.30″ × 6.90″ |
| Weight Capacity | ~400 lb |
| Ground Clearance Reduction | ~6–8″ |
| Install | ~2 hr, single person, drill & basic hand tools |
| Set Options | 2-piece, 3-piece, or 4-piece |
| Wheelbase | Fits 144″ and 170″ |
| Compatibility | 2007+ Mercedes-Benz Sprinter |
| Hardware | Complete mounting kit included |
03 — Full Length
Single piece board,
end to end.
103.9″ for 144″ wheelbase. 130.7″ for 170″. Continuous footbed with no gap at the slider.

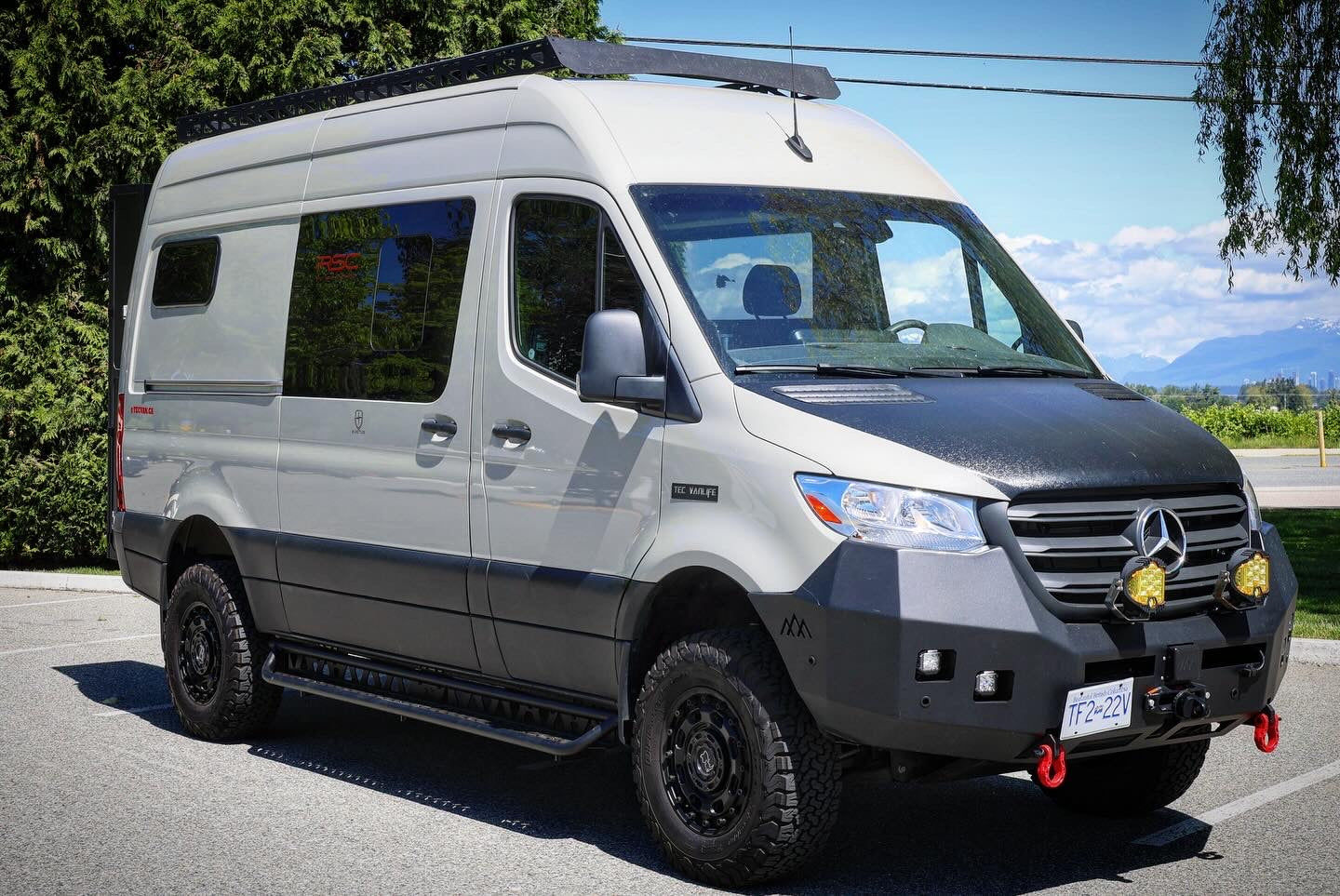

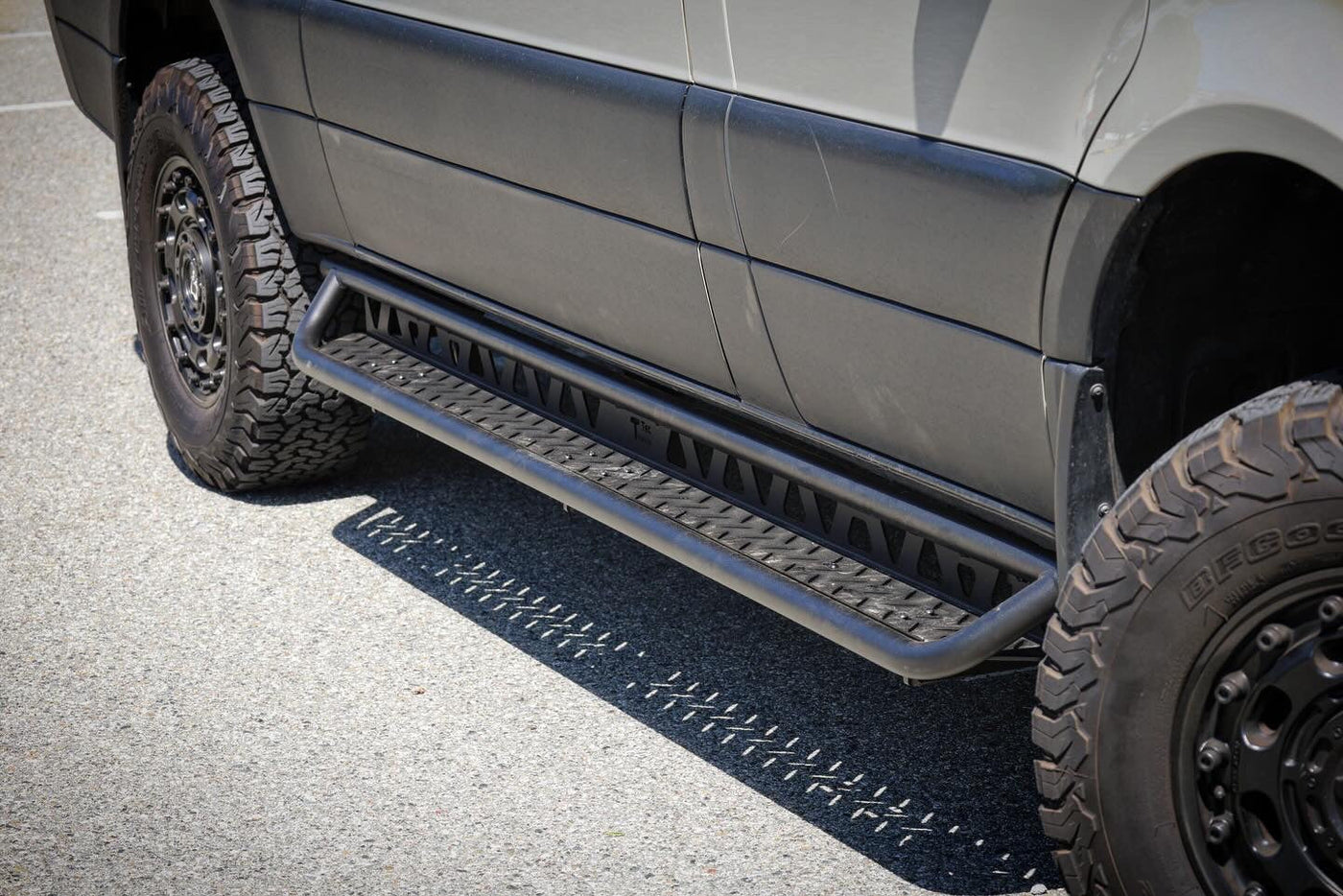

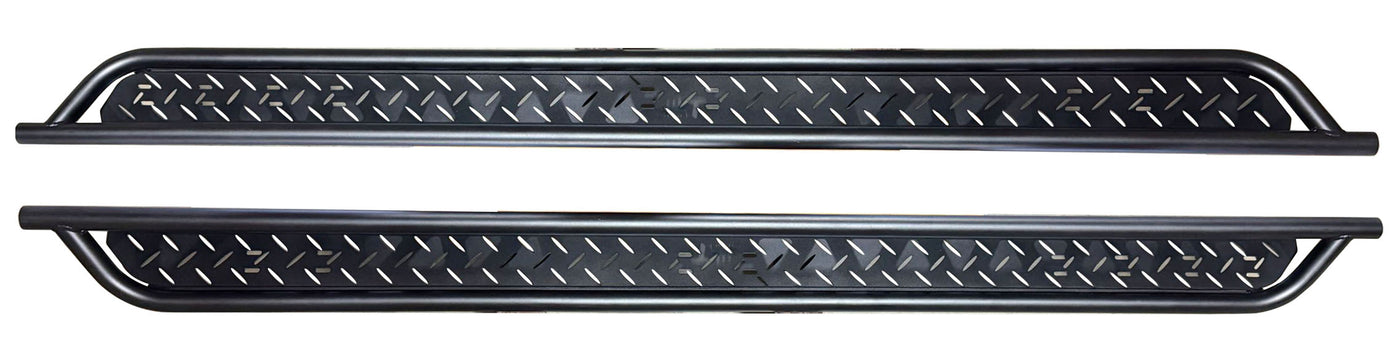

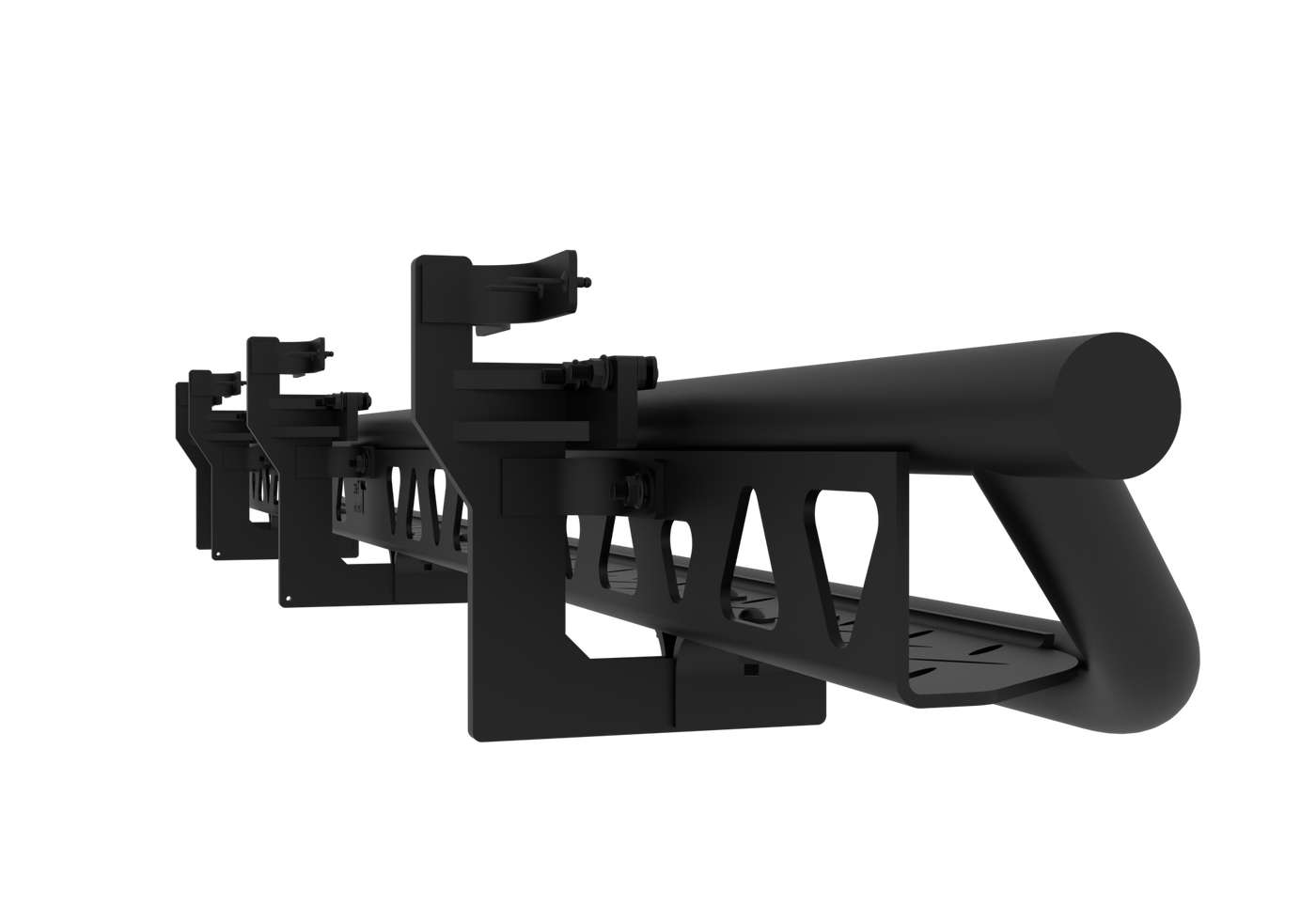

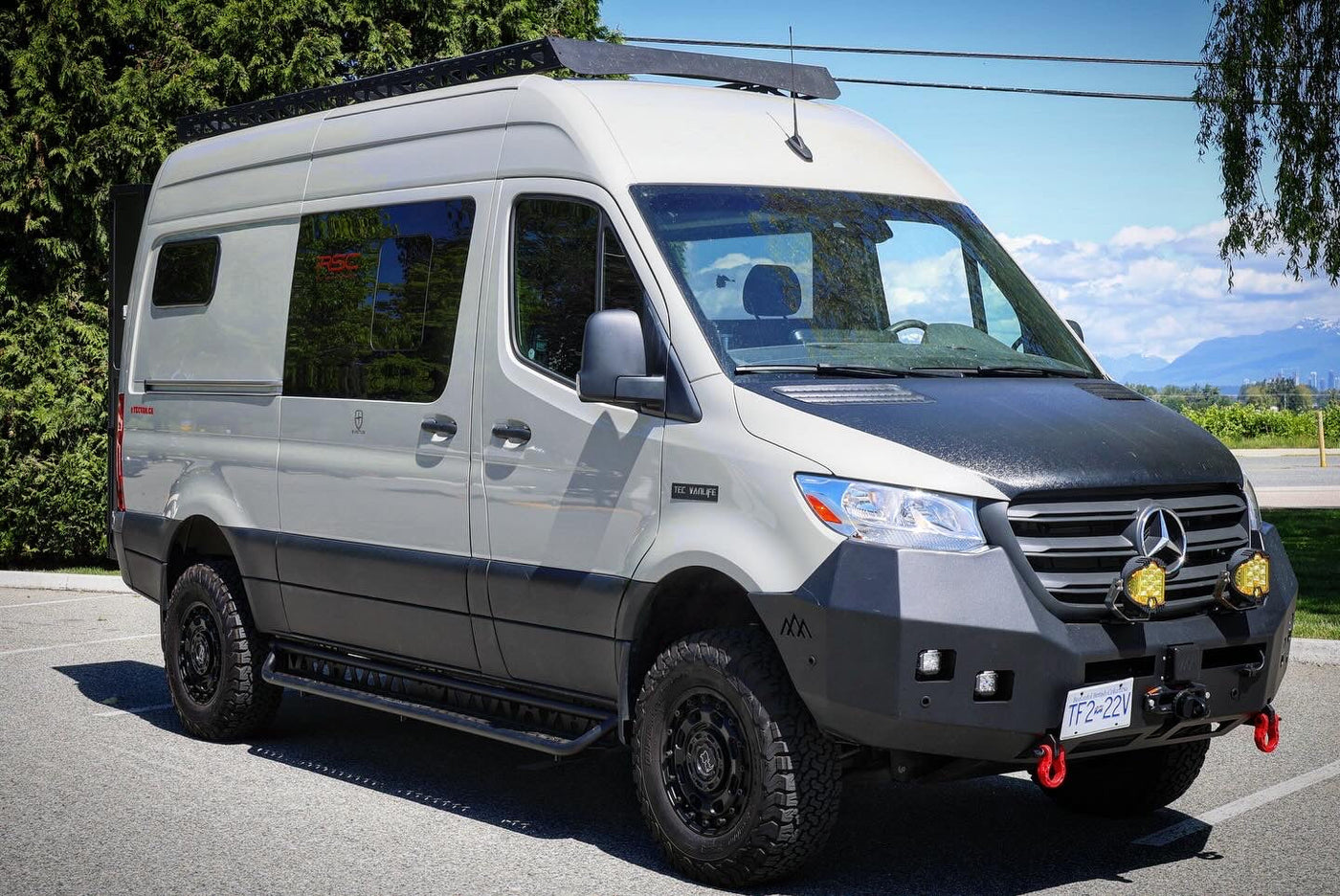

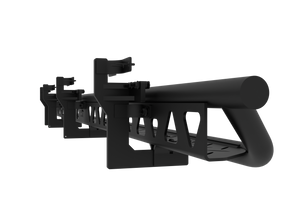

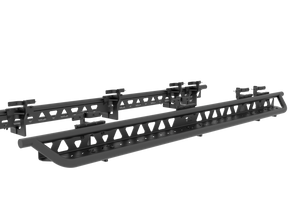

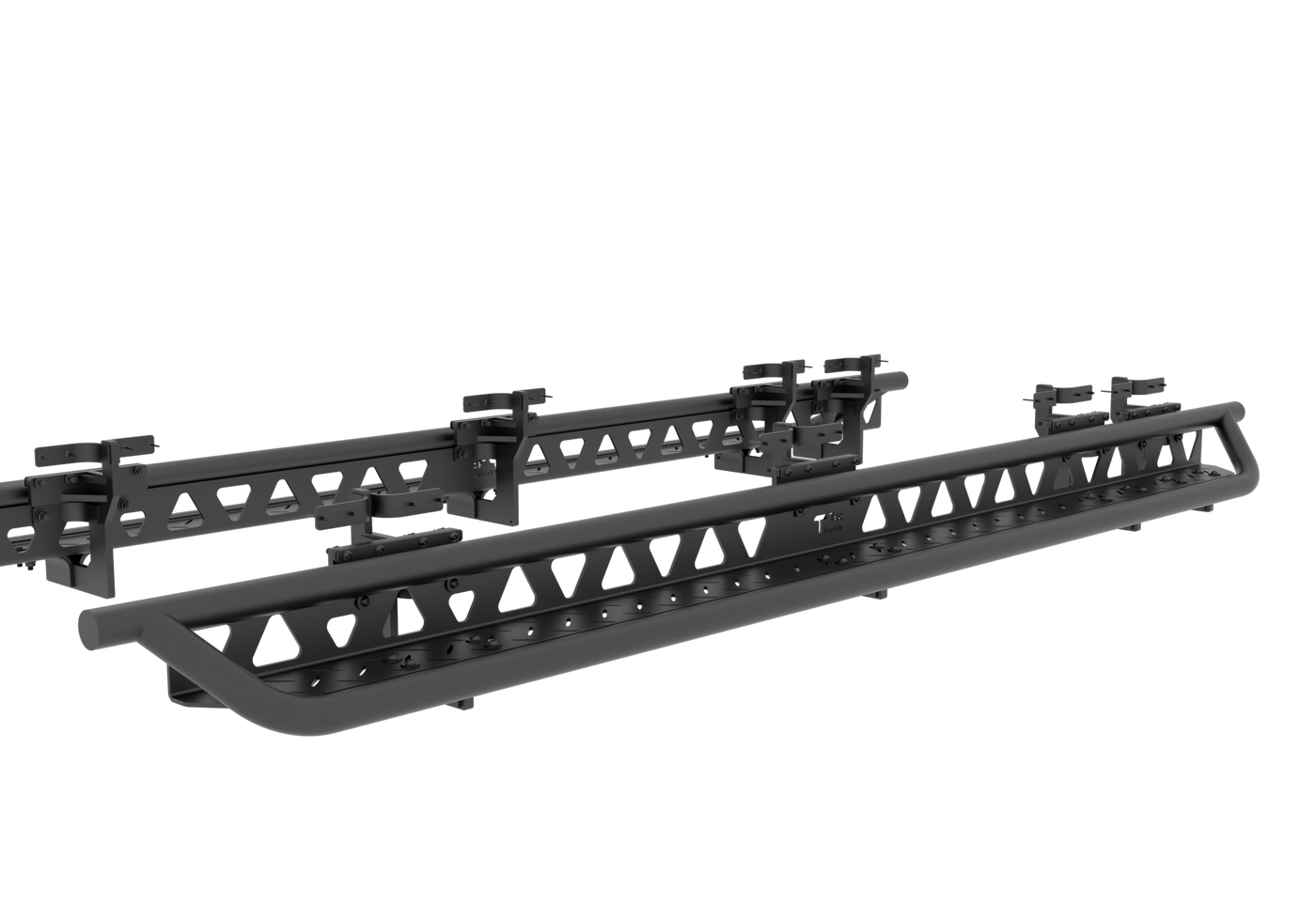

Full Length — single-piece drop-down
Series Features
Continuous Single-Piece Board
Uninterrupted footbed from cab door to rear wheel well. 103.9" on 144" wheelbase, 130.7" on 170".
Wheelbase-Specific Fitment
Separate 144" and 170" kits. Each board is dimensioned to align with factory body cuts.
Coated Aluminum
1.75" coated aluminum tube on TIG-welded support brackets. 6.30" footbed. 400 lb rated.
Bended Bracket Tabs
Tabs bend to clear factory undercoating. No grinding or surface prep required.
Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only.
03 — Full Length Series
$1,599 $1,849
Single-piece drop-down running board per side for 2007+ Sprinter vans. 103.9" for 144" wheelbase, 130.7" for 170". 1.75" coated aluminum tube. 6.30" footbed. TIG-welded support brackets.
Full Specifications
| SKU | E-HW-T-DRB-S-FL-144 / -170 |
| Material | Coated aluminum tube · TIG-welded brackets |
| Tube Diameter | 1.75″ |
| Footbed Width | 6.30″ |
| 144″ Board | 103.9″ × 6.30″ × 6.90″ (2640 × 160 × 175 mm) |
| 170″ Board | 130.7″ × 6.30″ × 6.90″ (3320 × 160 × 175 mm) |
| Weight Capacity | ~400 lb |
| Ground Clearance Reduction | ~6–8″ |
| Install | ~2 hr, single person, drill & basic hand tools |
| Wheelbase | 144″ and 170″ (wheelbase-specific kits) |
| Compatibility | 2007+ Mercedes-Benz Sprinter |
| Hardware | Complete mounting kit included |
